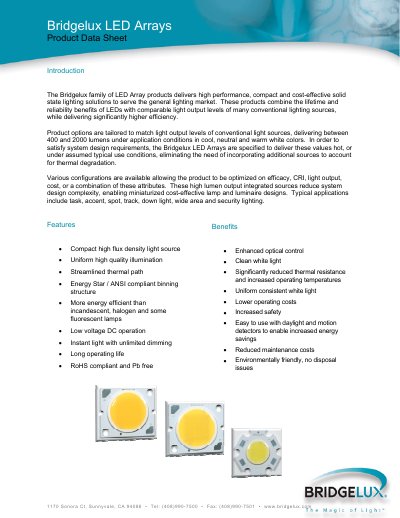

The Bridgelux LED Arrays family delivers high‑performance, compact solid‑state lighting solutions for general lighting applications. The arrays are available in cool, neutral and warm white colors with lumen outputs ranging from 400 lm to 2000 lm, and are designed for low‑voltage DC operation with unlimited dimming.
This datasheet includes product nomenclature, lumen maintenance, environmental compliance, flux, optical and electrical characteristics, absolute ratings, mechanical dimensions, packaging information and safety cautions. It also details the case temperature measurement point and provides part‑number specific tables for designers and OEMs.
| Typical Luminous Flux (400 lm version) | 400 lm |
|---|---|
| Color Temperature (Warm White) | 2850 K‑3700 K |
| Typical Forward Voltage (400 lm Warm White) | 9.0 V |
| Maximum DC Forward Current (400 lm Warm White) | 1500 mA |
| Operating Case Temperature Limit | 105 °C |
A 400 lm Bridgelux LED Array (e.g., part number BXRA‑W0400) has a typical luminous flux of 400 lm.
Avoid touching the resin (optical) area during operation, as it can become hot enough to burn skin, and handle the array only after it has cooled.
A case temperature measurement point is provided on the top surface of the LED array, near the mechanical dimensions section, to approximate the true case temperature.
