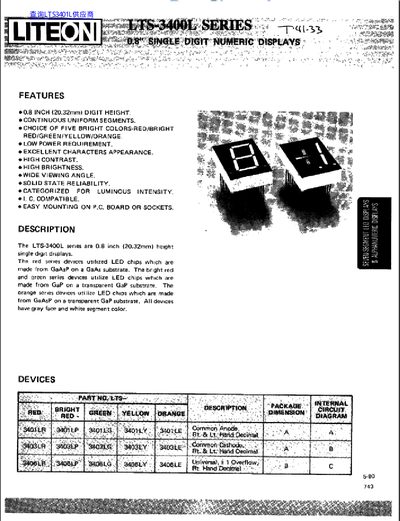

The LTS-3400L series are 0.8‑inch (20.32 mm) single‑digit LED display modules available in five bright colors (red, green, yellow, orange, white). They feature continuous uniform segments, low power consumption, high brightness, wide viewing angle and high contrast.
The datasheet lists package dimensions, pin‑out tables, internal circuit diagrams and detailed electrical/optical characteristics such as luminous intensity, forward voltage, reverse current and wavelength for each sub‑model (LTS‑3401L, LTS‑3403L, LTS‑3406L, etc.).
| Digit height | 0.8 inch (20.32 mm) |
|---|---|
| Average luminous intensity (LTS‑3400LE) | 800 mcd |
| Reverse current per segment | 100 µA (5 V) |
The digit height is 0.8 inch (20.32 mm).
