The HDDF is a diode from Rohm Semiconductor that features fast recovery time and low loss switching. It is ideal for use on printed circuit boards and can be used at ambient temperatures up to 25℃.

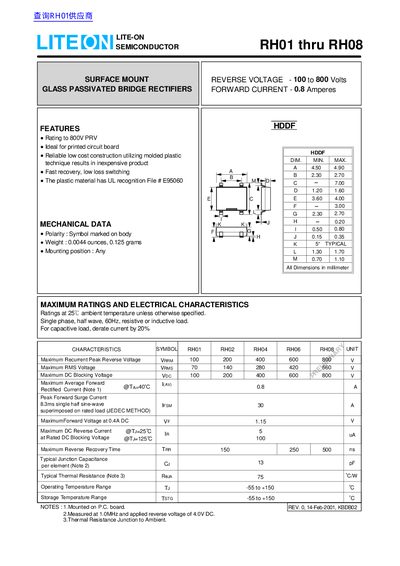

This document is a datasheet for the LITE-ON RHO01 through RHO8 series of surface mount glass passivated bridge rectifiers. These components are designed for use in single-phase, half-wave applications with resistive or inductive loads at 60Hz. The series offers reverse voltage ratings ranging from 100V to 800V and a maximum average forward rectified current of 0.8 Amperes.
| Maximum Average Forward Rectified Current | 0.8 A |
|---|---|
| Maximum Recurrent Peak Reverse Voltage | 100 to 800 V |
| Maximum Forward Voltage at 0.4A DC | 1.15 V |
| Maximum Reverse Recovery Time | 150 to 500 ns |
| Operating Temperature Range | -55 to +150 °C |
The maximum average forward rectified current is 0.8 Amperes at a temperature of 40°C.
The reverse voltage ratings range from 100V to 800V.
The typical thermal resistance from junction to ambient is 75 °C/W.
