This document describes the maximum ratings and electrical characteristics of the STPR805DB to STPR820DB products. These products feature glass passivated chip, superfast switching time, low forward voltage drop, and high current capability.

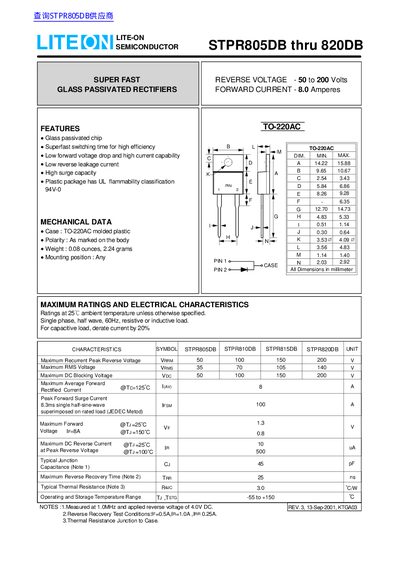

This document is a datasheet for LITE-ON Semiconductor's STPR805DB through STPR820DB series of glass passivated rectifiers. These components are designed as super fast reverse voltage rectifiers with a forward current capability of 8.0 Amperes. They are housed in a TO-220AC molded plastic package and feature low forward voltage drop and high surge capacity.
| Forward Current | 8.0 Amperes |
|---|---|
| Package Type | TO-220AC molded plastic |
| Maximum Recurrent Peak Reverse Voltage | 50 to 200 V |
| Maximum Reverse Recovery Time | 25 ns |
| Operating Temperature Range | -55 to +150 C |
