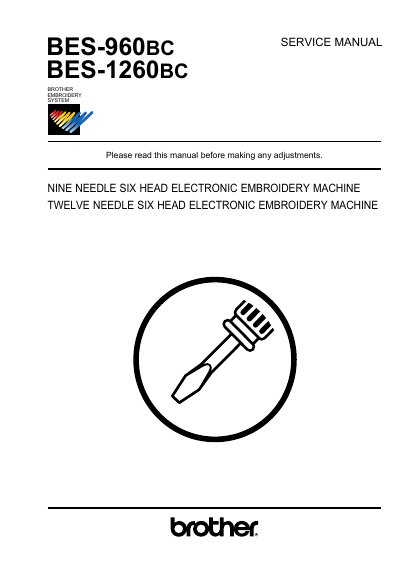

This document is the service manual for Brother Embroidery System, including safety instructions and operation guidelines for BES-960BC and BES-1260BC, which are nine needle six head and twelve needle six head electronic embroidery machines.
This service manual provides safety instructions, mechanical descriptions, parts replacement procedures, and adjustment guidelines for the Brother BES-960BC (9‑needle) and BES-1260BC (12‑needle) six‑head electronic embroidery machines. It is intended for qualified technicians and includes detailed diagrams, test mode operations, and electrical component replacement steps.
The document also covers maintenance tasks such as cleaning, greasing, and fan replacement, as well as troubleshooting methods, error code listings, and program version upgrades. All procedures emphasize safety precautions, proper grounding, and the use of genuine Brother replacement parts.
| Machine weight | more than 720 kg |
|---|---|
| Needle count (BES-960BC) | 9 needles |
| Number of heads | six heads |
You should wear protective goggles and gloves to prevent oil or grease from contacting your eyes or skin.
Installation should be carried out by four or more people due to the machine’s weight.
Wait at least 5 minutes after turning off the power switch and disconnecting the power cord before opening the face plate.
