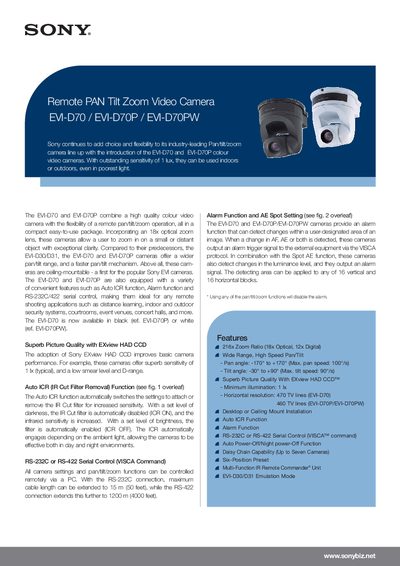

The EVI-D70 and EVI-D70P cameras are a high quality colour video camera with the flexibility of a remote pan/tilt/zoom operation, all in a compact easy-to-use package. Incorporating an 18x optical zoom lens, these cameras allow a user to zoom in on a small or distant object with exceptional clarity. Compared to their predecessors, the EVI-D30/D31, the EVI-D70 and EVI-D70P cameras offer a wider pan/tilt range, and a faster pan/tilt mechanism. Above all, these cam- eras are ceiling-mountable - a first for the popular Sony EVI cameras. The EVI-D70 and EVI-D70P are also equipped with a variety of convenient features such as Auto ICR function, Alarm function and RS-232C/422 serial control, making them ideal for any remote shooting applications such as distance learning, indoor and outdoor security systems, courtrooms, event venues, concert halls, and more.
The Sony EVI-D70 series includes the EVI-D70, EVI-D70P, and EVI-D70PW PTZ video cameras. They offer an 18× optical zoom lens, 1 lux minimum illumination, and can be ceiling‑mounted for flexible indoor or outdoor use. The cameras support high‑speed pan/tilt ranges (‑170° to +170° pan, ‑30° to +90° tilt) and include features such as Auto ICR, alarm detection, and six‑position presets.
Control is provided via RS‑232C (up to 15 m) or RS‑422 (up to 1200 m) using the VISCA protocol. Power is supplied from a DC 10.8‑13.2 V source with a consumption of 12 W. The unit measures 132 × 144 × 144 mm and weighs about 950 g. Supplied accessories include an AC adaptor, IR remote commander, ceiling bracket, and operating instructions.
| Zoom Ratio | 216× (18× Optical, 12× Digital) |
|---|---|
| Pan Angle | -170° to +170° (max 100°/s) |
| Tilt Angle | -30° to +90° (max 90°/s) |
| Minimum Illumination | 1 lux |
| Horizontal Resolution | 470 TV lines (EVI‑D70) |
| Power Requirement | DC 10.8‑13.2 V |
| Power Consumption | 12 W |
| Dimensions | 132 × 144 × 144 mm (W × H × D) |
| Weight | 950 g (2 lb) |
| Operating Temperature | -20 °C to +40 °C |
The Auto ICR function automatically disables the IR cut filter in low light (ICR ON) to increase infrared sensitivity and re‑enables it in bright conditions (ICR OFF).
The camera provides six programmable preset positions.
