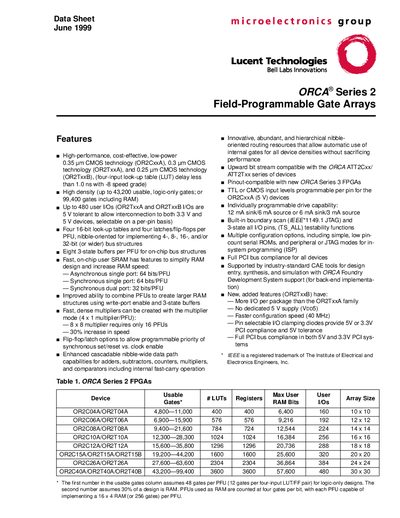

The ORCA® Series 2 Field-Programmable Gate Arrays Data Sheet provides an overview of OR2CxxA, OR2TxxA and OR2TxxB products, including technical specifications, available features, application examples and design guidelines.
The ORCA Series 2 field‑programmable gate arrays are SRAM‑based devices built on 0.35 µm, 0.3 µm and 0.25 µm CMOS processes. They offer high‑performance, low‑power operation with up to 43,200 usable logic‑only gates (99,400 gates including RAM) and up to 480 user I/Os that are 5 V tolerant.
The devices support a wide range of configuration methods, including serial ROM, peripheral and JTAG modes, and are fully PCI‑bus compliant. The architecture consists of programmable logic cells (PLCs) and programmable I/O cells (PICs), with flexible look‑up table (LUT) operating modes for combinatorial, ripple and memory functions.
