The SH-A3200 series is a high frequency VCXO produced by NEL company. The frequency range is 60.0MHz to 160.0MHz. The working voltage is 3.3 or 2.5V. It has high reliability and low jitter.
The SH-A3200 Series are voltage‑controlled quartz crystal oscillators with a CMOS‑compatible output. Frequency is set by applying a control voltage to Pin 1, and the output is enabled by a high logic level on Pin 2. The devices offer a wide frequency range, low jitter, high shock resistance, and RoHS‑compliant construction.

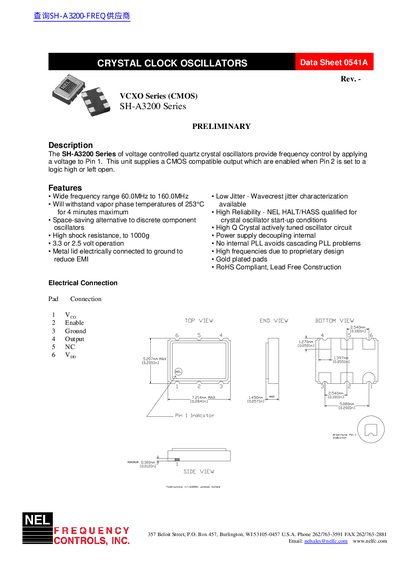

The datasheet lists detailed electrical characteristics, such as supply voltage, current consumption, phase‑noise performance, and environmental limits, as well as mechanical specifications like shock and vibration tolerances. It also includes package information and part‑numbering conventions.
| Supply voltage | 3.3 V ± 10 % (3.3 V – 3.63 V) |
|---|---|
| Output current | 8.5 mA |
| Operating temperature | 70 °C |
| Shock resistance | up to 1000 g |
It requires a 3.3 V supply with a tolerance of ±10 % (3.3 V – 3.63 V).
The oscillator can operate up to 70 °C.
