Featured Crystal manuals

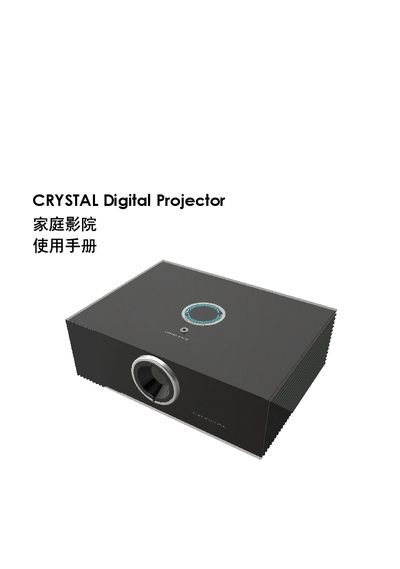

Crystal Digital Projector Manual
The Crystal Digital Projector manual guides users through installation, connection, and safe operation of the home‑theatre projector. It includes safety warnings, power requirements, and regulatory compliance information.
The document lists supported video inputs such as HDMI, VGA, USB, and RS‑232, and details the available output formats (480i, 720p, 1080p). Power is supplied via a 12 V DC connector, and the manual also contains FCC and WEEE compliance statements.
Covers: Safety Information · Installation · Connections · Operation · Maintenance · Specifications

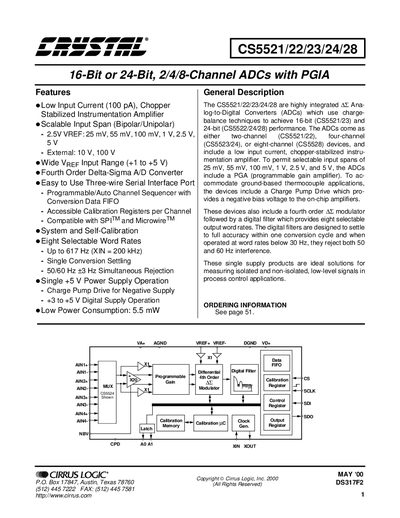

Cirrus Logic CS5521/22/23/24/28 Datasheet
The CS5521/22/23/24/28 family are highly integrated analog‑to‑digital converters offering 16‑bit (CS5521/23) and 24‑bit (CS5522/24/28) resolution. They are available in two‑, four‑, and eight‑channel configurations and include a low‑input‑current, chopper‑stabilized instrumentation amplifier with programmable gain and selectable input spans.
Key features include a fourth‑order delta‑sigma modulator, three‑wire serial interface compatible with SPI and Microwire, programmable channel sequencing with FIFO, self‑calibration, and a single‑supply operation from +5 V. The devices are suited for low‑level signal measurement in process‑control and thermocouple applications.
Covers: Characteristics and Specifications · General Description · Analog Characteristics · Digital Characteristics · Pin Descriptions · Package Dimension Drawings

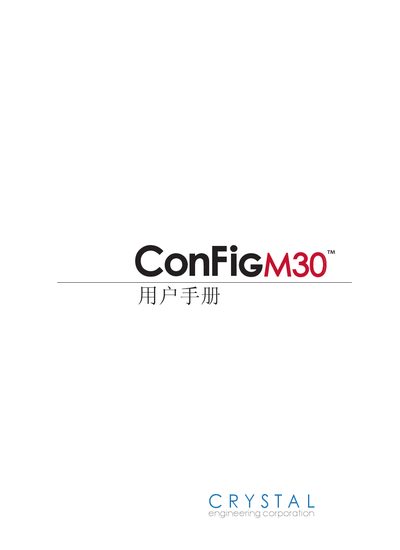

Crystal Config M30 User Manual
The Config M30 software lets qualified personnel customize Crystal pressure gauges via a serial cable and a Windows PC. It provides functions such as loading and saving configurations, changing engineering display units, adjusting calibration, and setting password protection.
The manual covers installation, connection procedures, operation instructions, settings management, and safety warnings, plus service and support information.
Covers: Overview · Installation · Operating Instructions · Settings · Instrument Identifier · Startup Message

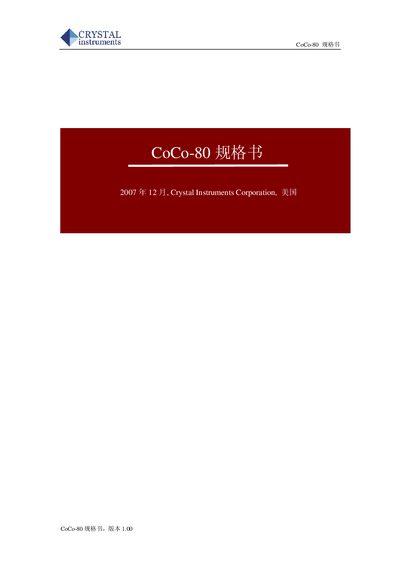

Crystal Instruments CoCo-80 Specification Sheet
The CoCo-80 is a handheld data recorder and dynamic signal analyzer with 4 or 8 selectable input channels, a 5.7‑inch color TFT LCD, USB, Ethernet and SD interfaces, and a built‑in signal source. It uses a dual‑processor architecture (XScale CPU and DSP) to provide real‑time time‑domain and frequency‑domain analysis up to 102.4 kHz per channel.
The device offers extensive data acquisition and storage capabilities, including up to 2 GB flash memory, multiple file formats (XML, ASCII, CSV, MATLAB, NI‑TDM) and configurable software (CSA scripts). Power options include AC 100‑240 V or a 6600 mAh rechargeable battery providing at least 6 hours of operation. This manual is written in Chinese.
Covers: Hardware System · Input Channels · Output Channels · Tachometer Input Specification · System Configuration · Physical Dimensions and Weight
Latest Crystal manuals
CRYSTAL AN80 Application Note
This document is an application note about the design guide for digital CCD cameras, which introduces the basics of digital cameras and the features of the Crystal Digital Imaging CCD camera chipset.
CRYSTAL SERIES CX-40HD CX-46HD user manual
This is the owner’s operating manual for Runco CX-40HD/CX-46HD liquid-crystal display, which includes instructions on using, installing and maintaining the product.
CRYSTAL SERIES CR-32HD CR-40HD user manual
CR-32HD / CR-40HD with Crystal Series™ LCD Displays owner’s operating manual, introduces the features and characteristics of the products, connection methods, basic operations, settings, etc.
CRYSTAL CS5126 handbook
This file is an introduction to the features and characteristics of Cirrus Logic CS5126 16-bit stereo A/D converter
CRYSTAL CS5317 Oversampling A/D Converter handbook
CS5317 is a 16-bit, 20 kHz oversampling A/D converter from Cirrus Logic that provides a complete voiceband DSP front-end, including a 16-bit A/D converter, internal track-and-hold amplifier, on-chip voltage reference, linear-phase digital filter, and on-chip phase-lock loop (PLL) for simplified output phase locking in modem applications. The CS5317 features DSP-compatible serial interface and offers output word rates up to 20 kHz. It is also characterized by low power dissipation (220 mW).
Crystal oscillator EG-2121CA
EG-2121CA is a low-power, low-cost, high-precision, high-stability high-frequency crystal oscillator from Murata Manufacturing Co., Ltd. Its working frequency range is 53.125 MHz to 500.0000 MHz. Its main features include: 1. Basic wave oscillation technology is used for excellent frequency stability. 2. 1.4 mm thick thin ceramic package, high density packaging, with excellent anti-shock and environmental performance. 3. Differential LV-PECL output is adopted, with high output power. 4. It has output enable function (OE) to achieve efficient energy saving.
CRYSTAL CS5333 DATA SHEET
CRYSTAL CRD4201-2 Data Sheet
This document introduces the Cirrus Logic CRD4201-2 Advanced Communications Riser (ACR) reference design, which features six channel analog audio outputs and a optical S/PDIF digital output. This board uses the CS4201 audio codec, which has many advanced features such as a built-in headphone amplifier, up to 30 dB of microphone boost and serial digital audio outputs. The reference design is available by ordering the CMK4201-2 manufacturing kit. This kit includes a full set of schematic design files (OrCAD® 7.2 and Or- CAD® 9.1 formats), PCB job files (PADS® ASCII), PCB artwork files and bill of materials. This reference design offers significant cost advantages, as it is based on a 2-layer low cost PC board.
CRYSTAL CS4923/4/5/6/7/8/9 DATA SHEET
This document describes the features of Cirrus Logic's CS4923/4/5/6/7/8/9 series multi-channel digital audio decoders, including optional virtual 3D output, simulated surround and programmable effects, real-time autodetection of Dolby Digital®, DTS®, MPEG multi-channel and PCM, and flexible 6-channel master or slave output.
CRYSTAL CS5516/CS5520 DATA SHEET
The CS5516 and CS5520 are complete solutions for digitizing low-level signals from strain gauges, load cells, and pressure transducers. These devices offer an on-chip software programmable instrumentation amplifier block, choice of DC or AC bridge excitation, and software selectable reference and signal demodulation. The CS5516 uses delta-sigma modulation to achieve 16-bit resolution at output word rates up to 60 Hz. The CS5520 achieves 20-bit resolution at word rates up to 60 Hz. The CS5516 and CS5520 sample at a rate set by the user in the form of either an external CMOS clock or a crystal. On-chip digital filtering provides rejection of all frequencies.
CRYSTAL CS4294 DATA SHEET
This document is an introduction to Cirrus Logic CS4294 Audio Codec, which introduces the features and characteristics of this product.
CRYSTAL CS4923/4/5/6/7/8/9 Data sheet(1)
This document is about the CS4923/4/5/6/7/8/9 multi-channel digital audio decoders, including product features, functions, application scenarios, etc.
CRYSTAL CLOCK OSCILLATORS ECL HS-2800/2810 Series handbook
CRYSTAL CLOCK OSCILLATORS SH-A3200 Series handbook
The SH-A3200 series is a high frequency VCXO produced by NEL company. The frequency range is 60.0MHz to 160.0MHz. The working voltage is 3.3 or 2.5V. It has high reliability and low jitter.
CRYSTAL CS4923/4/5/6/7/8/9 Data sheet1
Cirrus Logic has released the CS4923/4/5/6/7/8/9 series of multi-channel digital audio decoders, which feature virtual 3D output, simulated surround and programmable effects, real-time automatic detection of Dolby Digital®, DTS®, MPEG Multi-Channel and PCM, and flexible 6-channel master or slave output
