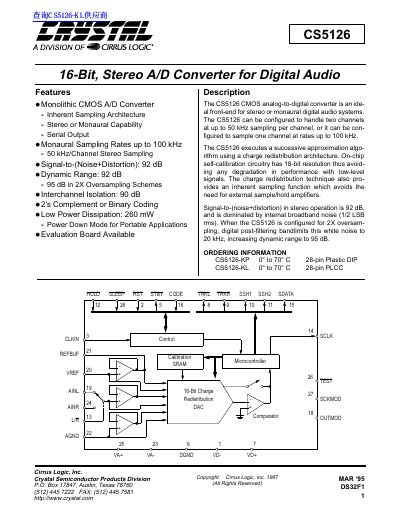

This file is an introduction to the features and characteristics of Cirrus Logic CS5126 16-bit stereo A/D converter
The CS5126 is a monolithic CMOS analog-to-digital converter designed for stereo or monaural digital audio systems. It utilizes a successive approximation algorithm with a charge redistribution architecture, eliminating the need for external sample/hold amplifiers. The device supports stereo sampling rates up to 50 kHz per channel or monaural rates up to 100 kHz.
| Resolution | 16 Bits |
|---|---|
| Dynamic Range (Stereo) | 92 dB |
| Dynamic Range (Monaural) | 95 dB |
| Interchannel Isolation | 90 dB |
| Power Dissipation (Sleep High) | 260 mW |
| Sampling Rate (Stereo) | 50 kHz/Channel |
| Sampling Rate (Monaural) | 100 kHz |
The CS5126 has a resolution of 16 bits.
No, the charge redistribution technique provides an inherent sampling function which avoids the need for external sample/hold amplifiers.
