This product is a high-efficiency Class D stereo/mono audio power amplifier with a mono DirectDrive® receiver amplifier and a stereo DirectDrive headphone amplifier.

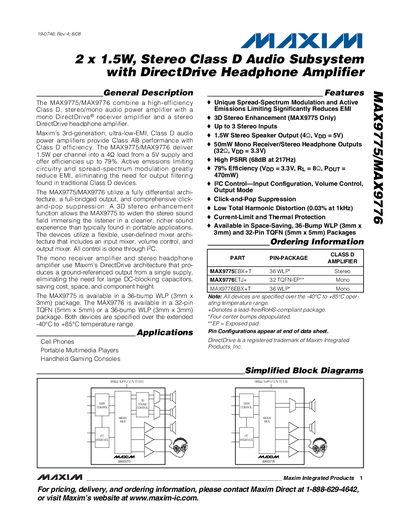

The MAX9775/MAX9776 combine a high‑efficiency Class D stereo/mono audio power amplifier with a DirectDrive® receiver and headphone amplifier. They provide 1.5 W per channel into a 4 Ω load from a 5 V supply, feature spread‑spectrum modulation, active emissions limiting, 3D stereo enhancement (MAX9775), and I²C‑controlled mixer, volume and output settings.
Both devices are offered in compact packages: the MAX9775 in a 36‑bump WLP (3 mm × 3 mm) and the MAX9776 in a 32‑pin TQFN (5 mm × 5 mm) or a 36‑bump WLP. They operate over –40 °C to +85 °C and are suited for cell phones, portable multimedia players, and handheld gaming consoles.
| Output Power per Channel | 1.5 W into 4 Ω at 5 V |
|---|---|
| Efficiency | up to 79 % |
| Operating Temperature Range | -40 °C to +85 °C |
| THD+N | 0.03 % at 1 kHz |
| Power‑Supply Rejection Ratio (PSRR) | 68 dB at 217 Hz |
| Current Limit | 1.6 A |
| Package (MAX9775) | 36‑bump WLP (3 mm × 3 mm) |
| Package (MAX9776) | 32‑pin TQFN (5 mm × 5 mm) or 36‑bump WLP |
The device delivers up to 1.5 W per channel into a 4 Ω load when powered from a 5 V supply.
They achieve efficiencies of up to 79 %.
Total harmonic distortion plus noise is as low as 0.03 % at 1 kHz.
