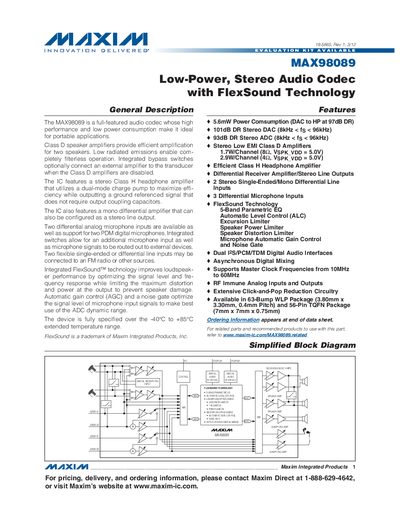

The MAX98089 is a low-power, stereo audio codec with FlexSound technology. It is ideal for portable applications due to its high performance and low power consumption. It features Class D speaker amplifiers that provide efficient amplification for two speakers. The codec enables completely filterless operation with low radiated emissions. Integrated bypass switches allow for connection to an external amplifier when the Class D amplifiers are disabled. The IC also includes a stereo Class H headphone amplifier that maximizes efficiency and outputs a ground referenced signal without the need for output coupling capacitors. It also features a mono differential amplifier that can be configured as a stereo line output. The codec supports two differential analog microphone inputs and two PDM digital microphones. Integrated switches allow for an additional microphone input and routing of microphone signals to external devices. It can also be connected to FM radios or other sources with two flexible single-ended or differential line inputs.
The MAX98089 is a low‑power, stereo audio codec designed for portable applications. It integrates Class D speaker amplifiers, a Class H headphone amplifier, FlexSound™ technology, and supports both analog and digital microphone inputs. The device operates from –40 °C to +85 °C and offers high dynamic range and low power consumption.
The document includes a general description, functional and block diagrams, absolute maximum ratings, electrical characteristics, timing specifications, power consumption data, pin configurations, and package information for the 63‑bump WLP and 56‑pin TQFN options. It also provides typical operating characteristics, signal‑processing paths, and revision history.
| Dynamic Range (DAC) | 101 dB DR Stereo DAC |
|---|---|
| Supported Sample Rate | 8 kHz – 96 kHz |
| Supply Voltage (Core) | 1.65 V – 1.95 V |
The DAC provides a 101 dB dynamic range.
