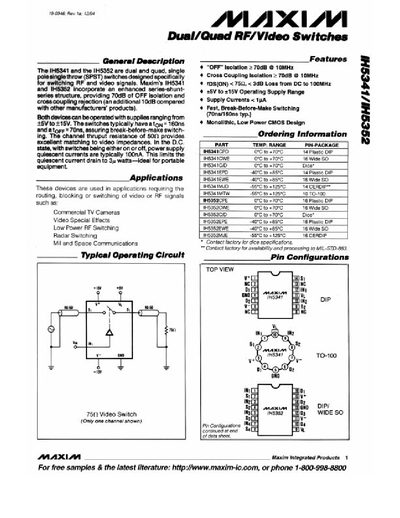

The IH5341 and IH5352 are dual and quad RF/video switches featuring high isolation (70 dB at 10 MHz) and low supply currents (< 1 pA). They are built with a monolithic low‑power CMOS design, offering break‑before‑make switching and excellent matching to video impedances. Typical quiescent current is about 100 nA, making them suitable for portable equipment.
The document lists absolute maximum ratings, supply voltage ranges, operating temperature limits (‑40 °C to +85 °C), pin configurations for various package types (14‑pin DIP, 16‑pin DIP, 16‑pin Wide‑SO, 10‑pin TO‑100), and detailed electrical characteristics such as ON‑state resistance and switching times. Test circuit diagrams illustrate measurement setups for switching time, OFF isolation, and cross‑coupling rejection.
| Supply Currents | < 1 pA |
|---|---|
| Quiescent Current | ≈ 100 nA |
| ON‑State Voltage | -5 V to +5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 14‑Pin DIP, 16‑Pin DIP, 16‑Pin Wide‑SO, 10‑Pin TO‑100 |
Typical quiescent current is about 100 nA.
The devices are rated up to +85 °C.
