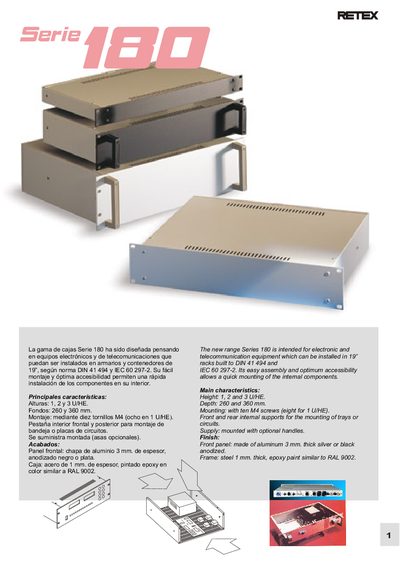

The 180 Series Boxes are specially designed for electronic and telecommunications equipment that can be installed in 19 inch racks and containers, meeting DIN 41 494 and IEC 60 297-2 standards.
The Series 180 enclosures are designed for electronic and telecommunication equipment that can be installed in 19" racks built to DIN 41 494 and IEC 60 297‑2. They offer easy assembly with ten M4 screws (eight for 1 U) and internal front and rear supports for trays or circuit boards.
Available in heights of 1, 2 and 3 U/HE, depths of 260 mm or 360 mm, and finished in anodized aluminum front panels (black or silver) and steel frames painted epoxy to match RAL 9002. Optional accessories include mounting trays, polyamide handles and colour‑coded covers. This manual is written in Spanish.
| Height | 1, 2 and 3 U/HE |
|---|---|
| Depth | 260 mm or 360 mm |
| Mounting screws | Ten M4 screws (eight for 1 U) |
| Front panel material | 3 mm aluminum, anodized black or silver |
| Frame material | 1 mm steel, epoxy paint RAL 9002 |
| Handle material | High‑resistance polyamide |
| Standard colors | Handles: black RAL 9004 or grey RAL 7030; Covers: blue RAL 5021 or grey RAL 7023 |
The enclosures are offered in heights of 1, 2 and 3 U/HE.
Two depth options are available: 260 mm and 360 mm.
The front panel is a 3 mm thick aluminum sheet, anodized black or silver.
The frame is 1 mm steel painted with epoxy to match RAL 9002.
