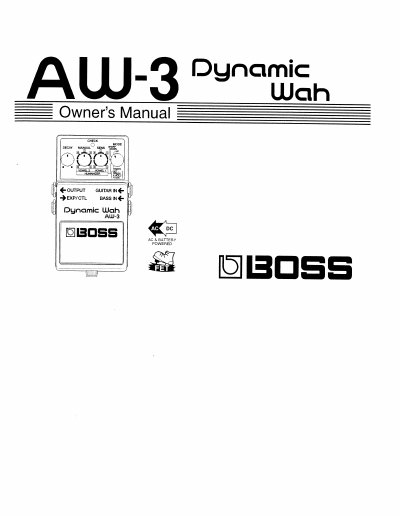

This manual provides instructions for the BOSS AW-3 Dynamic Wah effects unit. It details the main features, including five distinct modes (UP, DOWN, SHARP, HUMANIZER, and TEMPO) and the SENS control feature for adjusting wah intensity based on picking dynamics. The guide explains how to connect the unit to guitars or bass guitars using separate input jacks and how to utilize optional expression pedals or foot switches for expanded control.
| Power Supply | AC adaptor (BOSS PSA-series) or Alkaline Batteries |
|---|---|
| Input Jacks | GUITAR IN & BASS IN |
| Modes | UP, DOWN, SHARP, HUMANIZER, TEMPO |
Yes, the unit has separate input jacks for both instruments to allow specific settings for each.
Connecting a Roland EV-5 expression pedal allows you to use the pedal for wah and Humanizer effects, disabling the manual knobs.
The unit turns on automatically when you insert a plug into the GUITAR IN or BASS IN jack if running on battery power, or by connecting the AC adaptor.
