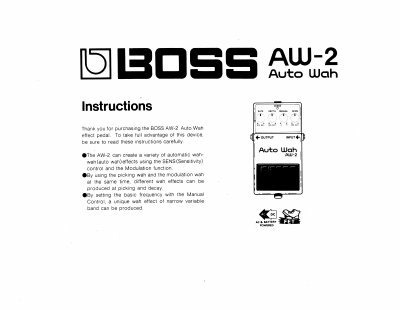

BOSS AW-2 Auto Wah Effect Pedal Instructions

Brand: BOSS
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 6
File format: PDF
File size: 699 KB
Published: 10 August, 2012
Updated: 27 August, 2012
MD5 checksum: F868CCFC39517E1BB711F51685DE870D
PDF: BOSS AW-2 Auto Wah Effect Pedal Instructions PDF

About this manual

This manual provides instructions for the BOSS AW-2 Auto Wah effect pedal. It explains how to use the various control knobs, including Modulation Rate, Modulation Depth, Manual, and Sens, to create different automatic wah-wah effects. The document details how to connect the unit to an amplifier or other effects and describes the function of the Check indicator.

What's inside

Panel Descriptions
Connections
Operation
Sample Settings
Battery Replacement
Important Notes
Specifications

Specifications

Power Supply	DC9V ; Dry Battery(9V type), AC Adaptor(PSA-120, 220 or 240 : option)
Input Impedance	1MΩ( Effect Off)
Output Impedance	1kΩ
Dimensions	70(W) X125(D) X55(H)mm
Weight	420g / 1.0 Ibs (including battery)

Frequently asked questions

What AC adaptors are compatible with the AW-2?

The unit is compatible with BOSS PSA-120, 220, or 240 AC adaptors.

What type of battery does the AW-2 require?

The pedal requires one 9-volt battery.

What happens when the Check indicator becomes dim?

When the LED becomes dim, it indicates that the battery should be replaced.
