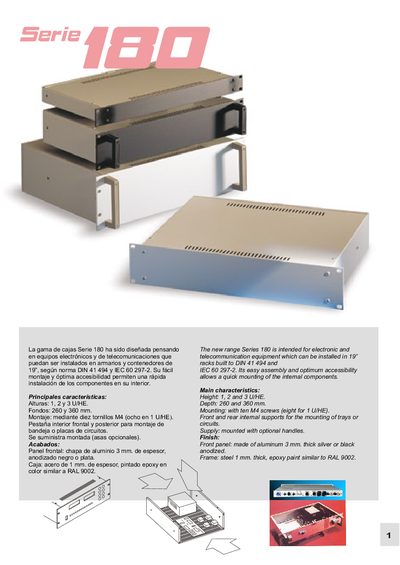

The Series 180 range is intended for electronic and telecommunication equipment which can be installed in 19” racks built to DIN 41 494 and IEC 60 297-2. Its easy assembly and optimum accessibility allows a quick mounting of the internal components. Main characteristics: Height: 1, 2 and 3 U/HE. Depth: 260 and 360 mm. Mounting: with ten M4 screws (eight for 1 U/HE). Front and rear internal supports for the mounting of trays or circuits. Supply: mounted with optional handles. Finish: Front panel: made of aluminum 3 mm. thick silver or black anodized. Frame: steel 1 mm. thick, epoxy paint similar to RAL 9002.
The Serie 180 range is designed for electronic and telecommunication equipment to be installed in 19" racks (DIN 41 494, IEC 60 297‑2). It offers heights of 1, 2 and 3 U/HE, depths of 260 mm or 360 mm, and mounts with ten M4 screws (eight for 1 U). The front panel is a 3 mm aluminium sheet, anodized silver or black, while the frame is 1 mm steel painted epoxy to match RAL 9002.
Optional accessories include mounting trays made of 1 mm steel, handles in black (RAL 9004) or grey (RAL 7030), and front panels in matching colours. Each reference ships with a pair of handles, four M4 Allen screws and two cover sets, allowing quick assembly and easy maintenance. This manual is written in Spanish.
| Height | 1, 2 and 3 U/HE |
|---|---|
| Depth | 260 and 360 mm |
| Front panel material | Aluminium 3 mm thick |
| Frame material | Steel 1 mm thick, epoxy paint (RAL 9002) |
| Mounting screws | Ten M4 screws (eight for 1 U) |
| Handle colours | Black RAL 9004, Grey RAL 7030 |
The enclosures are offered in heights of 1, 2 and 3 U/HE.
Two depth options are available: 260 mm and 360 mm.
The front panel is a 3 mm aluminium sheet, anodized silver or black.
Each reference includes a pair of handles, four M4 Allen screws and two cover sets.
