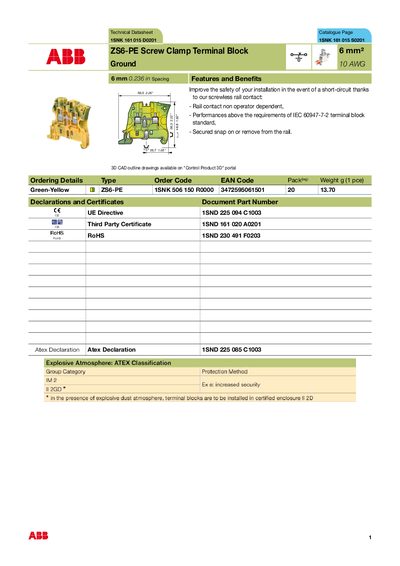

This is a technical datasheet for ZS6-PE terminal block. It includes the product features, dimensions, installation methods and more.
The ABB ZS6-PE screw clamp terminal block is presented with detailed technical data, including electrical ratings, mechanical dimensions, and safety features. Key performance figures such as rated short‑time withstand current (720 A) and IP20 protection are listed, along with material specifications like polyamide insulation and UL94 VO flammability rating.
Additional sections describe environmental test results, ATEX classification for explosive atmospheres, and a full list of compatible accessories and ordering details. The document also provides torque values, wire stripping length, and cross‑section ratings for proper installation.
| Rated short‑time withstand current (1 s) | 720 A |
|---|---|
| Insulating material | Polyamide |
| Flammability rating | UL94 VO |
| IP protection rating | IP20 |
| Storage temperature range | -55 °C to +110 °C |
| Operating temperature range | -5 °C to +40 °C |
| Torque (screw clamp) | 0.85 Nm |
| Wire stripping length | 10.5 mm |
| Connecting capacity per clamp (rigid conductor) | 0.2‑6 mm² (24‑10 AWG) |
| Rated cross‑section | 6 mm² (10 AWG) |
| ATEX classification | Group I, Category 2 |
The ZS6‑PE is rated for a short‑time withstand current of 720 A for 1 second.
It has an IP20 protection rating.
The insulating material is polyamide.
It can be stored from –55 °C up to +110 °C.
