ZS10-PE is a green-yellow ground terminal block from Schneider Electric. It has the following features: 1. Non-operator dependent rail contact, 2. Performances above the requirements of IEC 60947-7-2 terminal block standard, 3. Secured snap on or remove from the rail, 4. PE.N function available by combining ZS10-PE with ZS10-BL and 2 poles jumper bar JB8-2.
The Schneider ZS10-PE is a 10 mm² (6 AWG) screw‑clamp terminal block designed for ground connections. It features a rail‑contact system that is independent of operator skill and complies with IEC 60947‑7‑2 standards. The block offers a PE.N function when combined with compatible accessories.

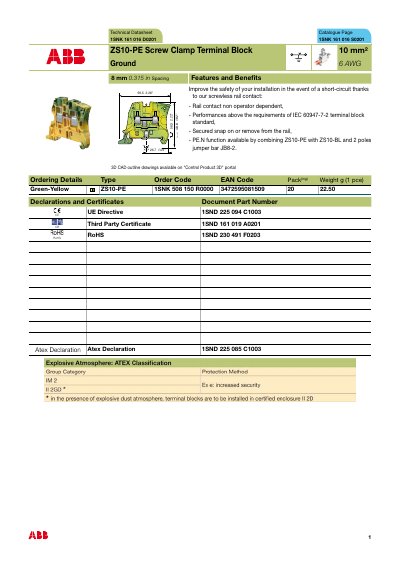

The datasheet provides detailed electrical, mechanical and environmental specifications, including IP20 protection, a torque requirement of 1.3 Nm, a maximum short‑circuit current of 1200 A (1 s), and an operating temperature range from –55 °C to +110 °C. Accessories such as jumper bars, end sections and protective covers are also listed.
| IP protection rating | IP20 |
|---|---|
| Insulating material | Polyamide |
| Connecting capacity per clamp (rigid conductor) | 0.5‑10 mm² (20‑6 AWG) |
| Rated current | IEC 60947‑7‑1 |
| Torque for screw clamp | 1.3 Nm |
The terminal block has an IP20 protection rating.
A torque of 1.3 Nm is required.
