The ZS16-PE is a screw clamp terminal block from Schneider Electric. It features a non-operator dependent rail contact, which improves safety in the event of a short circuit. Its performance also meets IEC 60947-7-2 standards, and it can be combined with ZS16-BL and 2-pole jumper bar JB10-2 to create a PE.N function.

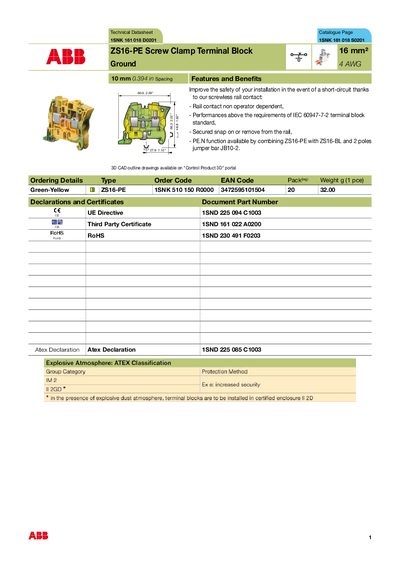

The ABB ZS16-PE screw clamp terminal block is presented with its technical specifications, safety features, and compliance with IEC standards. The document includes ordering details, mechanical and electrical characteristics, and environmental test results.
Additional sections cover short‑circuit current ratings, temperature ranges for storage and installation, and a list of compatible accessories such as end stops, jumper bars, and protecting covers.
| Rated short‑time withstand current (1 s) | 1920 A |
|---|---|
| Insulating material | Polyamide |
| IP protection rating | IP20 |
| Storage temperature range | -55 °C to +110 °C |
| Flammability rating | UL94 VO |
The rated short‑time withstand current is 1920 A for a 1 second duration.
It has an IP20 protection rating.
The insulating material is polyamide.
The terminal block can be stored from –55 °C up to +110 °C.
