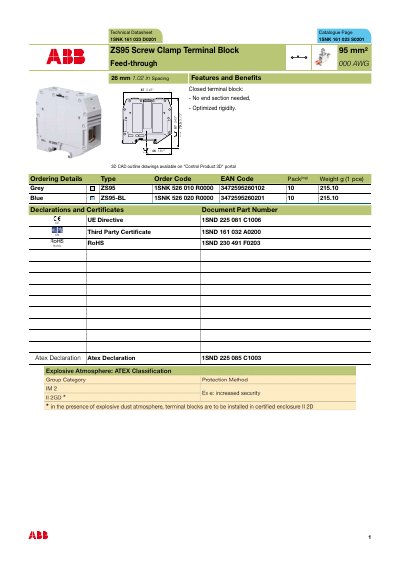

This document describes the features and benefits of the 1SNK 161 023 D0201 1SNK 161 023 S0201 ZS95 Screw Clamp Terminal Block, including closed terminal block and optimized rigidity. It also provides ordering details and related certificate information.
The ZS95 screw clamp terminal block provides a 95 mm² feed‑through design with a closed terminal construction that eliminates the need for an end section and offers optimized rigidity. It supports both rigid and flexible conductors, with detailed ordering codes for grey and blue variants.
Key features include a rated current of 232 A, a maximum voltage rating of 1000 V (IEC), IP10 protection, and a wide operating temperature range from –55 °C to +110 °C. The datasheet also lists environmental test results, short‑circuit ratings, and compatible accessories such as end stops and jumper bars. This manual is written in Chinese.
| Rated current | 232 A |
|---|---|
| Rated voltage | 1000 V |
| Insulating material | Polyamide |
| Protection rating | IP 10 |
| Operating temperature range | -55 °C to +110 °C |
| Wire stripping length | 26 mm |
| Torque (screw clamp) | 9.25 Nm |
| Rated cross‑section | 95 mm² |
The ZS95 terminal block is rated for a continuous current of 232 A.
It can withstand up to 1000 V according to IEC 60947‑1.
The recommended tightening torque is 9.25 Nm (± 0.25 Nm).
The device has an IP 10 protection rating.
