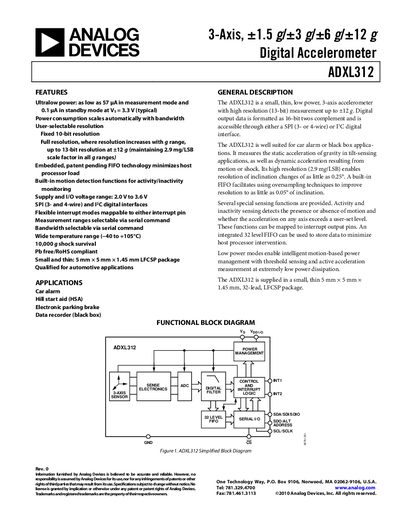

ADXL312 is a 3-axis, ±1.5 g/±3 g/±6 g/±12 g digital accelerometer with ultralow power, user-selectable resolution, embedded FIFO technology, flexible interrupt modes, and wide temperature range.
The ADXL312 is a small, thin 3‑axis accelerometer that provides high‑resolution (up to 13‑bit) measurements over selectable ranges of ±1.5, ±3, ±6 and ±12 g. It offers ultralow power consumption (as low as 57 pA in measurement mode) and supports both SPI (3‑ and 4‑wire) and I²C digital interfaces. Integrated features include a 32‑level FIFO, activity/inactivity detection, and flexible interrupt mapping.
The device operates from 2.0 V to 3.6 V, survives shocks up to 10,000 g, and is qualified for automotive applications. It is supplied in a 5 mm × 5 mm × 1.45 mm 32‑lead LFCSP package and is RoHS compliant.
| Measurement Range | ±1.5, ±3, ±6, ±12 g (user selectable) |
|---|---|
| Resolution | 10‑bit default, up to 13‑bit at ±12 g |
| Supply Voltage (Vs) | 2.0 V to 3.6 V |
| Standby Mode Leakage Current | 0.1 pA |
| Shock Survival | 10,000 g |
| Package Size | 5 mm × 5 mm × 1.45 mm LFCSP |
| Operating Temperature Range | −40 °C to +105 °C |
The ADXL312 operates from 2.0 V to 3.6 V.
It can survive shocks up to 10,000 g.
Yes, the ADXL312W models are qualified for automotive applications.
It is supplied in a 5 mm × 5 mm × 1.45 mm 32‑lead LFCSP package.
