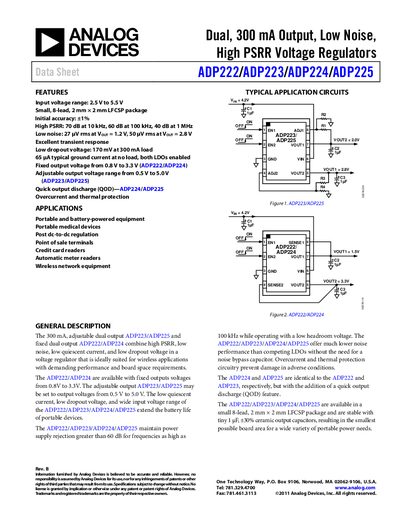

The ADP222/ADP223/ADP224/ADP225 are dual, 300mA output, low noise, high PSRR voltage regulators.
The ADP222/ADP223/ADP224/ADP225 family are dual‑output, 300 mA LDO voltage regulators that combine high PSRR, low noise, low quiescent current and low dropout voltage. They are offered in a compact 8‑lead 2 mm × 2 mm LFCSP package and support fixed (0.8 V‑3.3 V) or adjustable (0.5 V‑5.0 V) output configurations.
Typical applications include portable and battery‑powered equipment, medical devices, point‑of‑sale terminals, automatic meter readers and wireless networking gear. The document provides typical application circuits, pin descriptions, thermal data and an ordering guide.
| Input voltage range | 2.5 V to 5.5 V |
|---|---|
| Output voltage accuracy | ±1 % |
| Low dropout voltage (300 mA load) | 170 mV |
| Maximum output current | 300 mA |
| Package | 8‑lead 2 mm × 2 mm LFCSP |
The regulators operate with an input voltage from 2.5 V to 5.5 V.
The dropout voltage is 170 mV when delivering 300 mA.
They are supplied in an 8‑lead 2 mm × 2 mm lead‑frame chip‑scale package (LFCSP).
