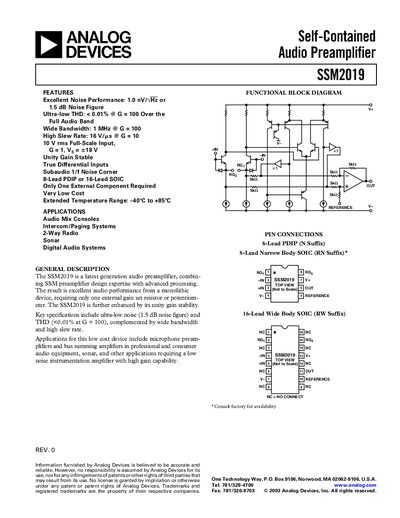

This is a datasheet for the SSM2019 audio preamplifier.
The SSM2019 audio preamplifier offers excellent noise performance (1 nV/√Hz at 1 kHz) and ultra‑low THD (<0.01% at G=100). It provides a wide bandwidth of up to 1 MHz at unity gain and a high slew rate of 16 V/ps at G=10. The device is unity‑gain stable, supports true differential inputs, and operates over an extended temperature range of –40 °C to +85 °C.
The part is available in 8‑lead PDIP, 8‑lead narrow‑body SOIC, and 16‑lead wide‑body SOIC packages. It requires only a single external resistor to set gain, and includes protection diodes, ESD protection, and a reference terminal for offset correction. Typical applications include microphone preamplifiers, bus summing amplifiers, audio mixing consoles, intercom systems, and sonar.
| Voltage Noise Density | 1 nV/√Hz at 1 kHz |
|---|---|
| Slew Rate | 16 V/ps at G=10 |
| Small‑Signal Bandwidth | 200 kHz at G=1000 |
| Supply Voltage Range | +5 V to +18 V |
| Maximum Gain | 70 dB |
| Output Voltage Swing | ±13.9 V at 25 °C |
The SSM2019 exhibits a typical voltage noise density of 1 nV/√Hz at 1 kHz.
The device operates from +5 V up to +18 V supply voltage.
The maximum gain of the SSM2019 is 70 dB.
