ADuM1230 is an isolated half-bridge gate driver that employs Analog Devices’ iCoupler® technology to provide independent and isolated high-side and low-side outputs. It combines high speed CMOS and monolithic transformer technology, making this isolation component have outstanding performance characteristics, such as high output current, high voltage withstand, high common-mode transient immunity and high frequency operation.
The ADuM1230 is an isolated half‑bridge gate driver that provides independent high‑side and low‑side outputs using Analog Devices’ iCoupler® technology. It supports up to ±700 V differential voltage and 0.1 A peak output current, making it suitable for IGBT/MOSFET gate drives, industrial inverters and switching power supplies.

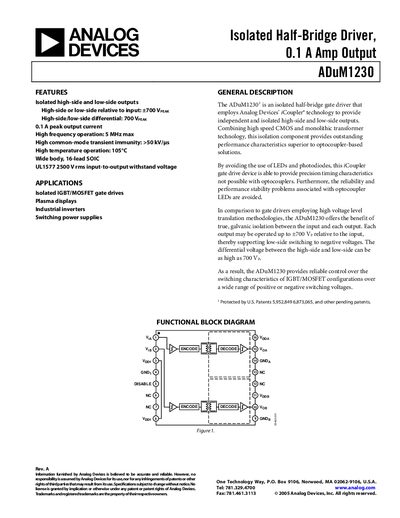

This handbook includes a feature list, application examples, detailed electrical and package specifications, regulatory information, recommended operating conditions, pin configuration, typical performance curves and application notes on common‑mode transient immunity. It serves as a comprehensive reference for designers and engineers working with the device.
| Input Supply Voltage | 4.5 V to 5.5 V |
|---|---|
| Output Supply Voltage | 12 V to 18 V |
| Peak Output Current | 0.1 A |
| Maximum Switching Frequency | 10 Mbps |
| Propagation Delay | 124 ns to 160 ns |
| Operating Temperature Range | -40 °C to +105 °C |
| Rated Dielectric Insulation Voltage | 2500 Vrms (1 min) |
The device can deliver a peak output current of 0.1 A.
It is rated for 2500 Vrms dielectric insulation voltage for 1 minute.
The recommended operating temperature range is –40 °C to +105 °C.
The ADuM1230 supports up to 10 Mbps switching frequency.
