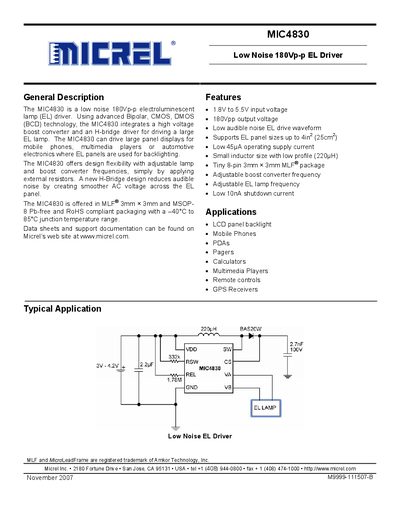

This datasheet provides detailed information on the features and characteristics of the MIC4830 low noise 180Vp-p EL driver.
The MIC4830 is a low‑noise 180 Vpp electroluminescent (EL) lamp driver that integrates a high‑voltage boost converter and an H‑bridge driver. It is designed for backlighting EL panels in mobile phones, multimedia players, automotive electronics, and other applications where compact, high‑voltage illumination is required.
Key features include a wide input voltage range (1.8 V‑5.5 V), adjustable lamp and boost‑converter frequencies via external resistors, very low operating current (45 µA typical, 10 nA shutdown), and availability in 3 mm × 3 mm MLF and MSOP‑8 RoHS‑compliant packages.
| Input Voltage Range | 1.8 V to 5.5 V |
|---|---|
| Output Voltage (peak‑to‑peak) | 180 Vpp |
| Operating Temperature Range | -40 °C to +85 °C |
| Typical Supply Current | 45 µA (typical) |
| Shutdown Current | 10 nA |
| Switching Frequency Range | 65 kHz to 250 kHz |
| EL Lamp Frequency Range | 60 Hz to 1000 Hz |
The device operates from 1.8 V to 5.5 V.
The shutdown current is as low as 10 nA.
The switching frequency can be set between 65 kHz and 250 kHz.
