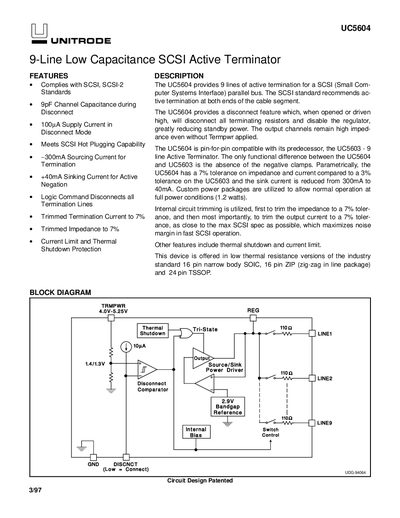

This document is the datasheet of uc5604, which provides the product introduction, function characteristics, parameter information and other information of uc5604
The UC5604 provides nine active termination lines for a SCSI parallel bus and includes a disconnect feature that reduces standby power by disabling the regulator when the control line is opened or driven high. It offers a sourcing current of up to 300 mA, a sinking current of 40 mA, and a supply current of only 100 µA in disconnect mode, with internal trimming for impedance and current tolerance of 7 %.
Technical specifications include a terminator impedance of 97‑129 Ω, regulator output voltage of 2.5‑3.2 V, and thermal shutdown at 170 °C. The device is offered in low‑thermal‑resistance SOIC‑16, ZIP‑16, and TSSOP‑24 packages, and complies with SCSI‑2 standards and hot‑plugging capability.
| Supply Current in Disconnect Mode | 100 µA |
|---|---|
| Sourcing Current for Termination | 300 mA |
| Sinking Current for Active Negation | 40 mA |
| Thermal Shutdown Temperature | 170 °C |
The UC5604 draws 100 µA supply current in disconnect mode.
It can source up to 300 mA for termination.
The device includes current‑limit and thermal‑shutdown protection.
The UC5604 is offered in SOIC‑16, ZIP‑16, and TSSOP‑24 packages.
