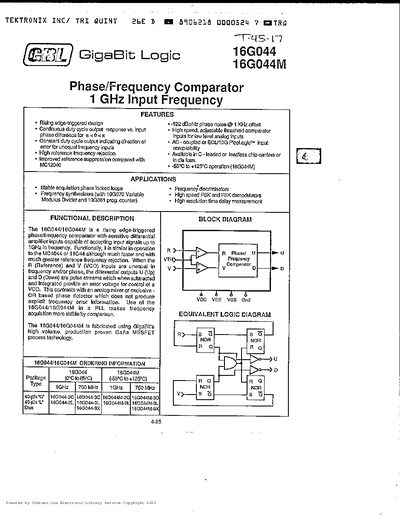

The 16G044/16G044M comparator provides a high‑speed, adjustable‑threshold phase/frequency detection suitable for PLLs, frequency discriminators and high‑resolution time‑delay measurement. It features a rising‑edge‑triggered design, -122 dBc/Hz phase noise at 1 kHz offset, and excellent reference‑frequency rejection.
The device operates from –55 °C to +125 °C (depending on package) and is offered in several 40‑pin leaded and leadless chip carriers. Pin functions include reference (R), VCO (V), up (U) and down (D) outputs, and a threshold voltage input (VTH). Electrical characteristics such as supply voltages, gain, and output swing are detailed in the datasheet.
| Maximum Input Frequency | 1 GHz |
|---|---|
| Operating Temperature Range | 55 °C to +125 °C |
| Supply Voltage (VOG) | 4.75 V to 5.25 V |
| Output Voltage Levels | VSS = -3.4 V, VEE = -5.2 V |
It can accept input signals up to 1 GHz.
