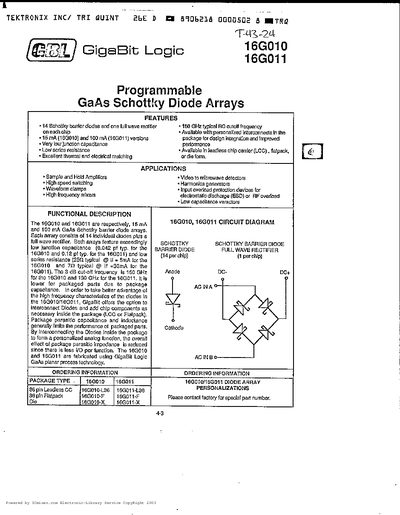

The 16G010 and 16G011 are GaAs Schottky barrier diode arrays offering 14 diodes plus a full‑wave rectifier per chip. They feature very low junction capacitance and low series resistance, making them suitable for high‑frequency applications such as sample‑and‑hold amplifiers and mixers.
The document provides functional description, ordering information, electrical characteristics, package drawings and specifications for both lead‑less chip carrier (LCC) and flat‑pack versions. Custom interconnects can be added inside the package to create personalized analog functions.
| Forward Current (16G010) | 15 mA |
|---|---|
| Forward Current (16G011) | 100 mA |
| Junction Capacitance (typ.) | 0.042 pF (16G010), 0.12 pF (16G011) |
The 16G010 is rated for a typical forward current of 15 mA.
The typical junction capacitance of the 16G010 is 0.042 pF.
