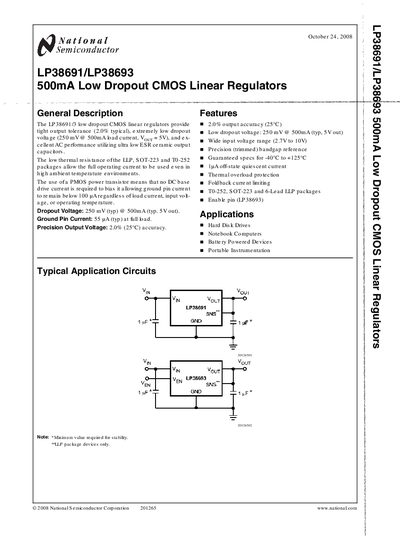

LP38691/LP38693 500mA Low Dropout CMOS Linear Regulators Stable with Ceramic Output Capacitors
The LP38691/LP38693 series are 500 mA low‑dropout CMOS linear regulators offering tight output tolerance (2 % typical) and excellent AC performance when used with ultra‑low ESR ceramic output capacitors. They operate from a wide input range of 2.7 V to 10 V and feature a PMOS power transistor that eliminates DC base‑drive current, keeping ground pin current below 100 pA.
Available in 6‑Lead LLP, SOT‑223, and TO‑252 packages, the devices provide foldback current limiting, an enable pin, and thermal shutdown protection. Detailed pin functions include Vin (input), GND (ground/heat sink), SNS (sense), Ven (enable), and Vout (regulated output). The datasheet also includes ordering information, electrical characteristics, and typical application circuits.
| Maximum Output Current | 500 mA |
|---|---|
| Dropout Voltage (typical) | 250 mV @ 500 mA, 5 V out |
| Output Voltage Accuracy | ±2 % (25 °C) |
| Input Voltage Range | 2.7 V to 10 V |
| Off‑state Quiescent Current | < 100 pA |
| Available Packages | 6‑Lead LLP, SOT‑223, TO‑252 |
| Thermal Shutdown Activation | 160 °C |
The typical dropout voltage is 250 mV at a 500 mA load.
It operates from 2.7 V up to 10 V.
The devices are offered in 6‑Lead LLP, SOT‑223, and TO‑252 packages.
