This product is a high power factor preregulator with 8-pin package, RMS line voltage compensation, precision multiplier/squarer/divider, internal 75kHz synchronizable oscillator, overvoltage protection comparator etc.
The UC1853, UC2853, and UC3853 provide a complete 8‑pin power‑factor correction solution with reduced external components, RMS line‑voltage compensation, and a precision multiplier/squarer/divider. Features include an internal 75 kHz synchronizable oscillator, average‑current‑mode PWM control, over‑voltage protection comparator, and a clamped MOSFET gate driver.

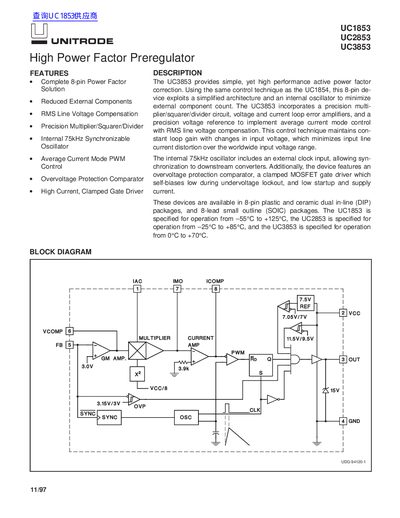

These devices are available in 8‑pin plastic, ceramic DIP, and 8‑lead SOIC packages. Operating temperature ranges are –55 °C to +125 °C for the UC1853, –25 °C to +85 °C for the UC2853, and 0 °C to +70 °C for the UC3853. Pin functions such as FB, IAC, IMO, OUT, VCC, VCOMP, and ICOMP are described, along with typical application circuitry and safety notices.
| Storage Temperature Range | 5 °C to +150 °C |
|---|---|
| Lead Soldering Temperature (10 s) | +300 °C |
| UC1853 Operating Temperature | –55 °C to +125 °C |
| UC2853 Operating Temperature | –25 °C to +85 °C |
| UC3853 Operating Temperature | 0 °C to +70 °C |
| Internal Oscillator Frequency | 75 kHz |
Synchronization is achieved by injecting a 2 V clock signal into the FB pin with a fast falling edge.
