The Maxim IH5048‑IH5051 series are CMOS analog switches designed for low leakage and low on‑resistance applications. They are available in 16‑pin DIP and SO packages and are pin‑compatible with the IH5040 family.

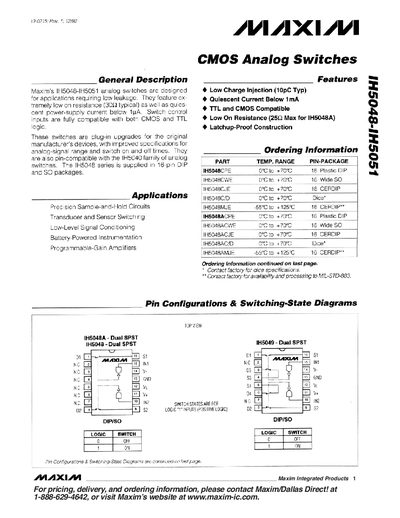

The document provides a general description, key features, absolute maximum ratings, detailed electrical characteristics, ordering information, and pin‑configuration diagrams for both DIP and SO versions.
| On Resistance (IH5048A) | 250 Ω max |
|---|---|
| Quiescent Current | < 1 mA |
| Charge Injection | 10 pC typ |
The typical on‑resistance is specified as up to 250 Ω for the IH5048A device.
The switches draw less than 1 mA of quiescent current.
The charge injection is typically 10 pC.
