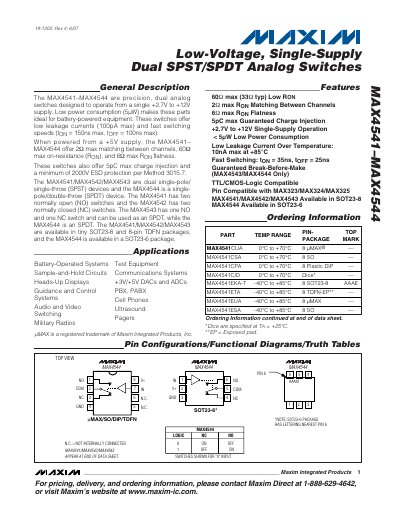

The MAX4541–MAX4544 are precision, dual analog switches designed to operate from a single +2.7V to +12V supply. Low power consumption (5µW) makes these parts ideal for battery-powered equipment. These switches offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns max, tOFF = 100ns max). When powered from a +5V supply, the MAX4541– MAX4544 offer 2Ω max matching between channels, 60Ω max on-resistance (RON), and 6Ω max RON flatness. These switches also offer 5pC max charge injection and a minimum of 2000V ESD protection per Method 3015.7. The MAX4541/MAX4542/MAX4543 are dual single-pole/ single-throw (SPST) devices and the MAX4544 is a single- pole/double-throw (SPDT) device. The MAX4541 has two normally open (NO) switches and the MAX4542 has two normally closed (NC) switches. The MAX4543 has one NO and one NC switch and can be used as an SPDT, while the MAX4544 is an SPDT. The MAX4541/MAX4542/MAX4543 are available in tiny SOT23-8 and 8-pin TDFN packages, and the MAX4544 is available in a SOT23-6 package.
The MAX4541‑MAX4544 family are precision dual analog switches that operate from a single +2.7 V to +12 V supply. They feature low power consumption (5 µW), low leakage (100 pA max) and fast switching (tON ≈ 150 ns, tOFF ≈ 100 ns). The devices are available in SOT‑23‑8, TDFN‑8 and SOT‑23‑6 packages and are TTL/CMOS‑logic compatible.
The data sheet provides detailed electrical characteristics, pin configurations, package dimensions, and recommended power‑supply sequencing. It also includes test circuit diagrams, ordering information, and revision history for the MAX4541, MAX4542, MAX4543 (dual SPST) and MAX4544 (SPDT) devices.
| Supply voltage range | +2.7 V to +12 V |
|---|---|
| Power consumption | 5 µW |
| On‑resistance (RON) at 5 V | 60 Ω max (33 Ω typ) |
| On‑resistance matching | 2 Ω max between channels |
| Leakage current | 100 pA max |
| Switching speed | tON ≈ 150 ns max, tOFF ≈ 100 ns max |
| ESD protection | ≥ 2000 V per channel |
| Charge injection | 5 pC max |
They operate from a single +2.7 V to +12 V supply.
The typical on‑resistance is 33 Ω, with a maximum of 60 Ω.
They consume only about 5 µW, making them suitable for battery‑powered equipment.
Each channel is protected for at least 2000 V ESD.
