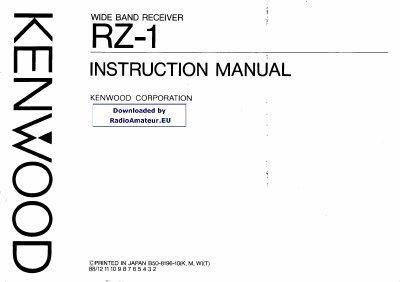

This is a user manual for a wide band receiver
This manual covers safety precautions, power requirements, and handling instructions for the Kenwood RZ-1 wide band receiver. It explains how to avoid electric shock, proper ventilation, cleaning, and what to do in case of abnormal odor or smoke.
The document also lists the receiver's technical specifications, accessories, installation procedures for fixed and mobile use, connection details, and operating controls such as memory channels, scanning functions, and message memory. A schematic diagram and optional accessories are included for service reference.
| Frequency Range (U.S.A. version) | 500 kHz ~ 824 MHz |
|---|---|
| Frequency Range (Other market version) | 500 kHz ~ 905 MHz |
| Antenna Impedance | 50~300 Ω (50 Ω nominal) |
| Power Requirement | 11‑16 VDC (13.8 VDC nominal) |
| Operating Temperature | -10°C ~ +60°C (14°F ~ 140°F) |
| Dimensions (W×H×D) | 180 × 50 × 176 mm |
| Weight | 1.5 kg (3.3 lbs) |
| Memory Channels | 100 |
| Power LINE OUT | 150 mV |
The receiver requires 11‑16 VDC, with a nominal 13.8 VDC supply.
The unit provides 100 memory channels.
Turn off the receiver’s power switches, the engine key, and the DC power supply before connecting or disconnecting the power connector.
It operates from –10 °C to +60 °C (14 °F to 140 °F).
