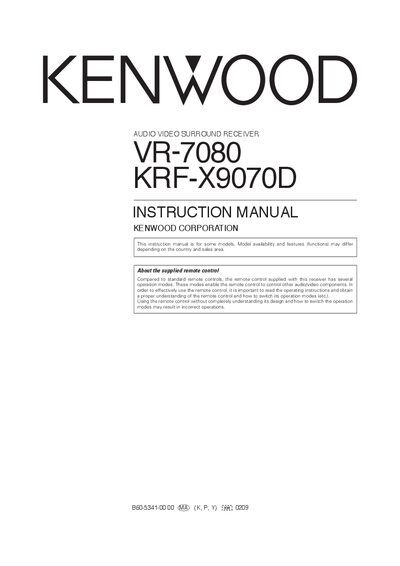

VR-7080 KRF-X9070D audio video surround receiver instruction manual

About this manual

This manual guides you through unpacking, connecting audio and video components, configuring the remote control, and using the receiver’s many surround‑sound features. It is divided into Preparations, Operations, Remote Control, and Additional Information sections.

Safety precautions, voltage‑selector settings, and troubleshooting tips are included, along with detailed specifications for power output, supported audio formats, and indicator functions.

What's inside

• Unpacking
• Preparing the remote control
• Connecting audio components
• Connecting video components
• Speaker settings
• Remote control operation
• Special features
• Specifications
• In case of difficulty

Specifications

Frequently asked questions

How do I set the AC voltage selector switch for my region?

Move the selector lever with a small screwdriver until it matches the line voltage printed for your area.

What should I do if the remote control does not work?

Check that the batteries are not exhausted, ensure the remote is in the correct operation mode, and keep it within range of the receiver.

How can I register setup codes for other AV components?

Press and hold the LEARN key for three seconds, then enter the numeric code (e.g., 9‑7‑8) to store the setup code.
