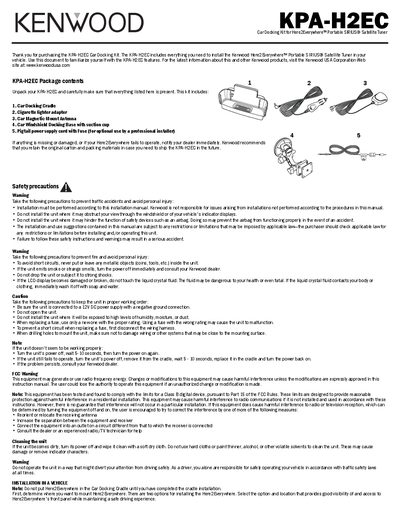

Kenwood KPA-H2EC Car Docking Kit User Guide

This is an installation manual for Kenwood's Here2Everywhere portable satellite tuner, which mainly introduces the installation steps and precautions

Brand: Kenwood
Category: Car Accessories
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 137 KB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: D0721293C1219C19F30042024FBCDBD3
PDF: Kenwood KPA-H2EC Car Docking Kit User Guide PDF

About this manual

This document provides instructions for the Kenwood KPA-H2EC Car Docking Kit, which is used to install the Here2Everywhere Portable SIRIUS Satellite Tuner in a vehicle. The kit includes a car docking cradle, cigarette lighter adapter, magnetic-mount antenna, and windshield docking base.

What's inside

Package contents
Safety precautions
Installation in a vehicle
Placing the Base and Cradle
Attaching Power in a Vehicle
Connecting Audio
Installing the Antenna

Specifications

Power supply requirements	9~16V, negative ground
Audio output	560 ohms
Dimensions	110mm(L) x 74mm(W) x 30mm

Frequently asked questions

What is included in the KPA-H2EC package?

The package includes a Car Docking Cradle, Cigarette lighter adapter, Car Magnetic-Mount Antenna, Car Windshield Docking Base with suction cup, and Pigtail power supply cord with Fuse.

Where should the antenna be mounted?

The antenna should be mounted on a metal surface at least 12" x 12" exactly 5.5" away from the vehicle's rear window, ideally on the roof.
