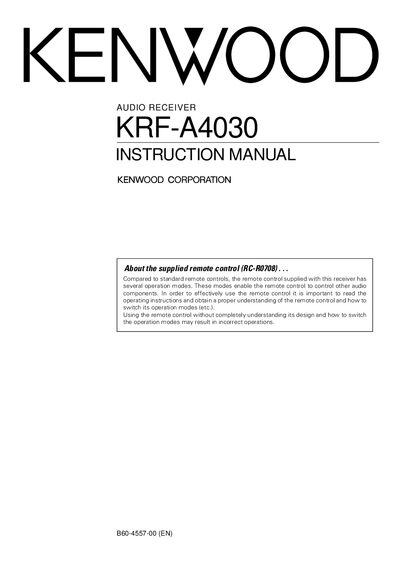

This manual introduces the remote control function of this audio receiver, which is different from the standard remote control function. It supports multiple operation modes and can control other audio devices. However, users need to fully understand the product design and operation modes to avoid incorrect operations.
This manual is divided into three main sections: Preparations, Operations, and Other. The Preparations section covers unpacking, safety precautions, and connecting audio components, antennas, speakers, and system control cords. The Operations section explains how to use the remote control, system control functions, and various playback and recording features. The Other section includes troubleshooting, specifications, and warranty information.
Key features described include the remote control (RC‑RO0708), system control compatibility, RDS tuner functions, antenna setup, speaker connections, and detailed technical specifications such as power output, distortion, and frequency ranges.
| Rated power output (Stereo) | 105 W + 105 W |
|---|---|
| Total harmonic distortion | 0.02 % (1 kHz, 50 W) |
| Signal‑to‑noise ratio (PHONO MM) | 75 dB |
| PHONO (MM) input sensitivity / impedance | 2.5 mV / 27 kΩ |
| Bass tone control | +9 dB at 100 Hz |
| Treble tone control | +9 dB at 10 kHz |
| FM tuning frequency range (UK/Europe) | 87.5 MHz ~ 108.0 MHz |
| AM tuning frequency range | 531 kHz ~ 1,602 kHz |
| Dimensions (depth) | 389 mm |
Reset the microcomputer by following the instructions in the “In case of difficulty” section.
The RDS Auto Memory can automatically preset up to 30 stations.
