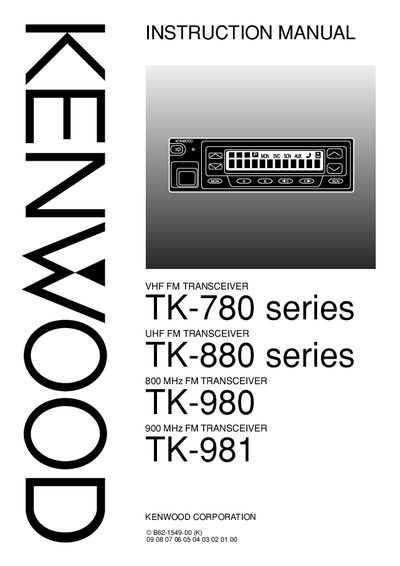

Kenwood TK-780 Series Transceiver User Manual

About this manual

The Kenwood TK-780 series is a VHF/FM mobile transceiver designed for reliable communications in vehicles. This manual covers the TK-780, TK-780H, TK-880, TK-880H, TK-980, and TK-981 models.

It includes unpacking and checking equipment, supplied accessories, preparation steps, required tools, power‑cable connection, installation procedures, panel orientation, basic operation, and mandatory safety instructions. Technical details such as terminal descriptions and RF exposure guidelines are also provided.

What's inside

• Unpacking and Checking Equipment
• Supplied Accessories
• Preparation
• Tools Required
• Power Cable Connection
• Installing the Transceiver
• Orientation
• Front Panel and Microphone
• Basic Operations
• Safety Instructions

Specifications

Frequently asked questions

What safety precautions should be taken when using the transceiver?

Do not configure the transceiver while driving, avoid exposing it to direct sunlight, and keep it away from dusty, humid or wet areas.

What antenna may be used with the transceiver?

Only the manufacturer‑ or dealer‑supplied antenna may be used, and it must be installed at least 60 cm (2 ft) from any person.

How should the power cable be connected?

Connect the red lead to the positive (+) battery terminal and the black lead to the negative (–) battery terminal.
