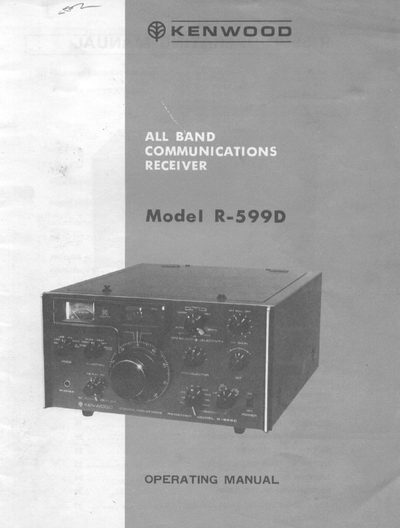

This manual covers the R-599D all‑band communications receiver, detailing its specifications, operating controls, and step‑by‑step operating instructions. It also includes sections on accessory circuitry, alignment procedures, maintenance, and physical dimensions.
Key features described are the solid‑state RF and IF stages, multiple band coverage from 1.8 MHz to 144 MHz, built‑in noise blanker, AGC, VFO with RIT, and the ability to run from various AC or DC power sources. The document provides wiring diagrams, circuit descriptions, and safety information for proper installation and service.
| Power requirements | 100/117/220/240 V AC, 50/60 Hz, 12 ~ 15 VDC |
|---|---|
| Power consumption | < 15 W (AC) |
| Audio output impedance | 4 – 16 Ω (speaker or headphones) |
| Antenna input impedance | 50 – 75 Ω (unbalanced) |
| Dimensions | 10‑1/8" W × 5‑1/2" H × 12‑7/32" D |
| Weight | 12.5 lb (5.7 kg) |
The receiver can be powered from 100, 117, 220 or 240 V AC (50/60 Hz) or from a 12 ~ 15 V DC source.
The unit includes fixed channel oscillators for five specific frequencies.
The audio output impedance is 4 to 16 Ω for speakers or headphones.
