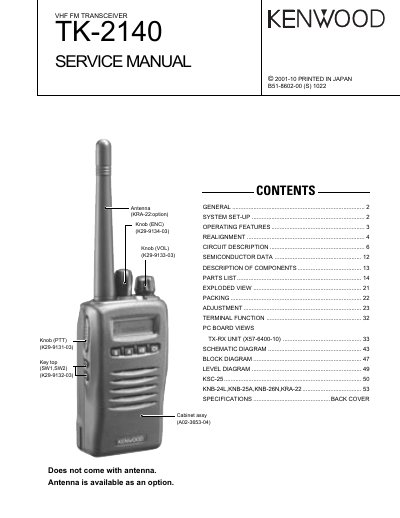

Kenwood TK-2140 Service Manual

About this manual

The TK-2140 is a VHF/FM portable transceiver designed for 136‑174 MHz operation in both trunking and conventional formats. The manual provides detailed system set‑up, safety precautions, and service procedures for technicians.

It includes information on programming via a PC (KPG‑36 interface and KPG‑74D software), circuit description, realignment, firmware updates, and a parts list for replacement components.

What's inside

• General / System Set‑Up
• Operating Features
• Realignment
• Circuit Description
• Programming Interface
• Firmware Programming
• Parts List

Specifications

Frequently asked questions

What is required to program the TK-2140?

A personal computer (IBM PC or compatible), the KPG‑36 programming interface cable, and the KPG‑74D programming software are required.

What safety precaution should be taken before transmitting?

Ensure all RF connectors are securely verified and any open connectors are properly terminated before transmitting.
