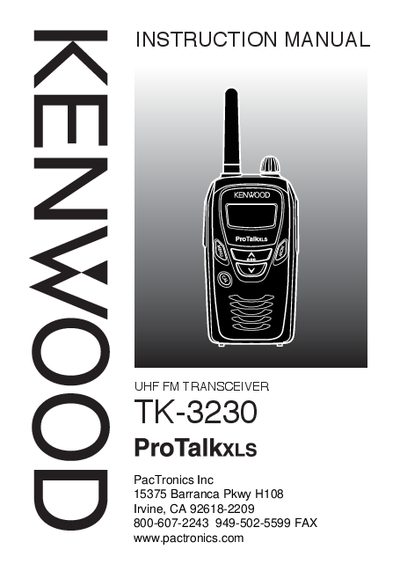

This is a Kenwood TK-3230 UHF FM TRANSCEIVER. It is lightweight and compact, using a lithium-ion battery pack. It has a sturdy, polycarbonate body and a spring-loaded belt clip. It supports 122 tone/code settings for each channel. It also has Privacy Talk scrambling function and FleetSync operation. It also supports automatic battery power saver and low battery power warning. It supports key lock and Super Lock. It also supports hands free operation when using an optional headset.
This manual covers everything you need to get started with the Kenwood TK-3230 UHF FM transceiver, including unpacking, battery installation, channel setup, privacy talk, VOX operation and other key features. Safety warnings, FCC compliance information and proper handling guidelines are included to ensure reliable and lawful use.
The troubleshooting guide helps you resolve common issues such as battery problems, range limitations, and communication errors, while the specifications section details tone settings, channel spacing, battery type and expected operating ranges for various environments.
| Tone/code settings per channel | 122 |
|---|---|
| Channel spacing | 12.5 kHz |
| Battery type | Lithium‑ion |
| Battery power level indicator | Yes, with low battery warning |
| Range (open locations) | up to 4 miles |
| Range (residential areas) | up to 1.5 miles |
| Range (steel/concrete reinforced buildings) | up to 200,000 ft |
| Range (high‑rise buildings) | up to 15 floors |
Do not transmit for more than 50% of the total operating time.
The transceiver uses a 12.5 kHz channel spacing.
The device includes a battery power level indicator with a low‑battery warning.
Turn the transceiver off in explosive atmospheres, near fuel, explosives, aircraft, medical facilities, and when near airbags or pacemakers.
