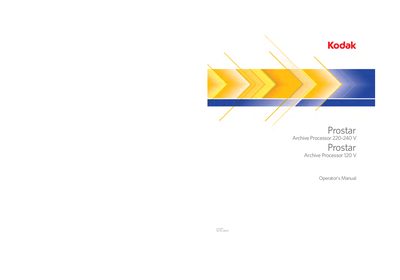

This manual introduces the safe use of Prostar Archive Processor 220-240 V/120 V.
This manual covers safety precautions, installation requirements, and step‑by‑step start‑up procedures for the Kodak Prostar Archive Processor. It includes detailed information on power connections, water supply, film loading, and chemical replenishment.
Technical specifications such as power requirements, dimensions, operating environment, heat and noise emissions are listed, along with maintenance, cleaning, and troubleshooting guidance. Warranty and service contact details are provided at the end of the document.
| Power requirements (220‑240 V) | 220‑240 VAC, 50 Hz, single phase, 7.5 A |
|---|---|
| Power requirements (120 V) | 120 VAC, 50 Hz, single phase, 12 A |
| Dimensions (height) | 91 cm (36 in.) with cover open |
| Dimensions (length) | 110 cm (42 in.) with reel on take‑up spindle |
| Weight (empty) | 52.2 kg (115 lb) |
| Weight (with chemicals) | 63.5 kg (140 lb) |
| Operating temperature range | 18.5 °C to 30 °C (65 °F to 86 °F) |
| Relative humidity range | 20 % to 76 % |
| Maximum heat emission | 5100 BTU |
The processor should be used in an environment with an ambient temperature of 18.5 °C to 30 °C (65 °F to 86 °F) and relative humidity of 20 % to 76 %.
When loaded with chemicals, water, and processing racks, the processor weighs up to 63.5 kg (140 lb).
