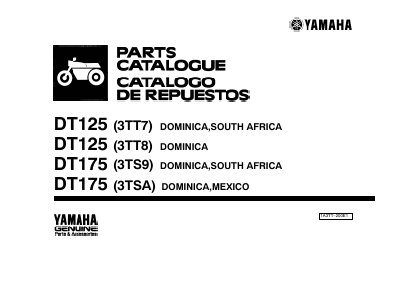

This document is a parts catalogue for DT125/DT175, which includes the part numbers and names of the model
This parts catalogue provides a complete listing of replacement parts for Yamaha DT125 and DT175 motorcycles. It includes part numbers, descriptions, quantities, and remarks, allowing users to order the correct components.
The document also explains the model code system, colour coding, and abbreviations used throughout the catalogue, and it contains a numerical index for quick reference to part numbers.
The catalogue covers the Yamaha DT125 (models 3TT7 and 3TT8) and DT175 (models 3TS9 and 3TSA).
The model label is affixed at the location shown in figure (8) of the catalogue, described under “Model Label Affixing Location”.
UR means “Use specified parts number”, UN means “Use as many as needed”, AP means “Alternate Parts”, and LM means “Local Made (parts need to be ordered locally)”.
