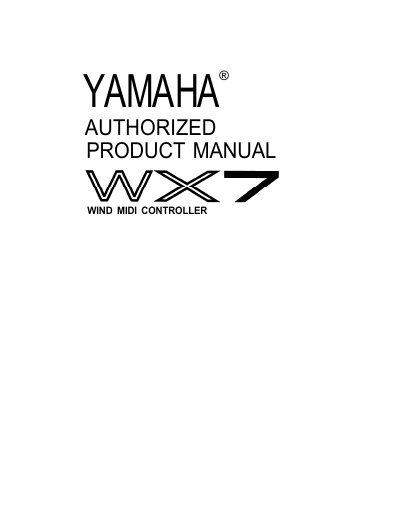

This document is the user manual of Yamaha WX7 Wind MIDI Controller
The manual introduces the Yamaha WX7 Wind MIDI Controller, describing its expressive features, standard Böhm fingering, octave transpose key, pitch‑bend wheel, and advanced functions such as Key Hold and Dual Play. It explains how the instrument converts breath and lip pressure into MIDI data for use with synthesizers, tone generators, and computer sequencers.
The document is organized into sections covering precautions, control guide, accessories, quick start, setup, playing techniques, dip‑switch settings, playing‑response adjustment, MIDI theory, glossary, specifications, and fingering charts. It also lists all supplied accessories, battery options, power‑pack details, and maintenance tips to keep the WX7 performing reliably.
| Power supply | 9 V DC |
|---|---|
| Battery type | 6 AA‑size batteries |
| Optional AC adaptor | 12 V AC adaptor (Yamaha PA‑1) |
| MIDI/Power Pack cable length | 1.5 m (4 ½ ft) |
| MIDI extension cord length | 5 m (15 ft) |
| Number of dip switches | 8 |
There are eight dip switches located under the cover of the instrument.
