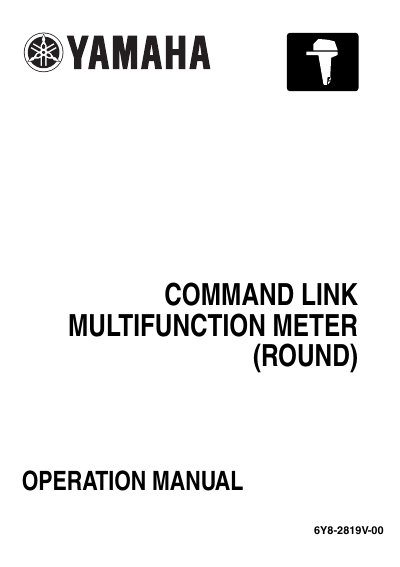

This manual describes how to use Yamaha Command Link Multifunction Meter
This manual explains how to install and operate the Yamaha Command Link Multifunction Meter (Round) for compatible outboard motors. It covers the tachometer unit, speed & fuel meter unit, optional sensors, and the various displays the meter provides.
The document details button operations, custom mode settings, periodic maintenance notifications, service functions, and troubleshooting steps such as resetting the engine number and calibrating fuel flow. Safety warnings and cautions are highlighted throughout.
| Cooling water/engine temperature display levels | 6 levels |
|---|---|
| Battery voltage warning thresholds | ≤12 V or ≥16 V |
| Periodic maintenance notification interval | Every 100 engine hours |
| Set button long‑press duration | 1 second |
Enter custom mode and select “01 (resetting maintenance intervals)” to clear the maintenance indicator.
The indicator blinks and displays “L” for low voltage when the battery voltage falls to 12 V or less.
In custom mode, press the set button sequence to access “02 (setting fuel sensor)” and select the desired sensor type.
