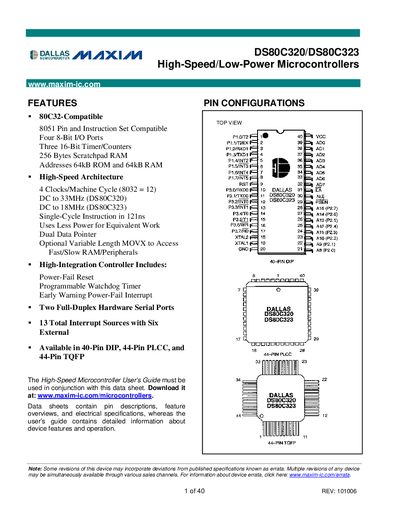

DS80C320/DS80C323 are high-speed, low-power microcontrollers that are compatible with 80C32 and 8051
The DS80C320 and DS80C323 are high‑speed, low‑power 80C32‑compatible microcontrollers offering up to 33 MHz (DS80C320) or 18 MHz (DS80C323) crystal rates. They retain full 8051 instruction compatibility while delivering 1.5‑3× faster execution, dual full‑duplex serial ports, additional interrupts, and programmable watchdog features.
These devices are available in 40‑pin DIP, 44‑pin PLCC, and 44‑pin TQFP packages, support operating voltages from 4.25 V to 5.5 V (DS80C320) or 2.7 V to 5.5 V (DS80C323), and provide 256 B of scratchpad RAM, 64 kB ROM, 64 kB RAM, three 16‑bit timers, and four 8‑bit I/O ports.
| Operating voltage (DS80C320) | 4.25 V to 5.5 V |
|---|---|
| Maximum crystal frequency (DS80C320) | 33 MHz |
| Package options | 40‑Pin DIP, 44‑Pin PLCC, 44‑Pin TQFP |
| I/O ports | Four 8‑bit ports |
| Timer/Counters | Three 16‑bit timer/counters |
| Scratchpad RAM | 256 Bytes |
| Memory address space | 64 kB ROM, 64 kB RAM |
| Serial ports | Two full‑duplex hardware serial ports |
| Interrupt sources | 13 total (6 external) |
The DS80C320 operates from 4.25 V up to 5.5 V.
Both devices include two full‑duplex hardware serial ports.
They are offered in 40‑pin DIP, 44‑pin PLCC, and 44‑pin TQFP packages.
The DS80C320 supports a maximum crystal rate of 33 MHz.
