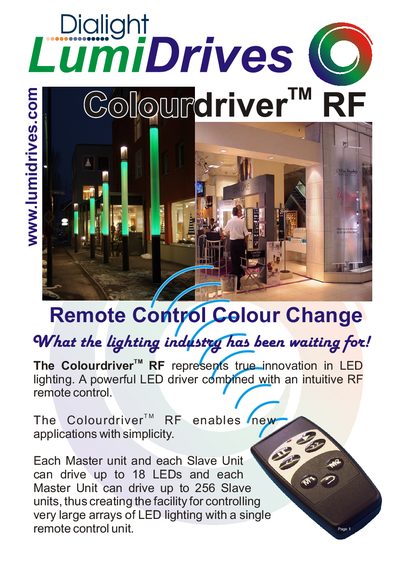

The Colourdriver RF is a powerful LED driver combined with an intuitive RF remote control, capable of driving large arrays of LEDs. Each master unit can control up to 256 slave units, allowing extensive lighting installations with a single remote.
The datasheet provides specifications for input voltage, power consumption, output ranges, environmental limits, and remote control features such as RF frequency and battery life, as well as typical connection diagrams and application examples for residential, retail, and outdoor lighting.
| Input Voltage Range | 86‑265 V AC |
|---|---|
| Frequency | 50‑60 Hz |
| Power Consumption | 27 W |
| Efficiency (max load) | 80 % typ |
| Output Power Range | 1‑7.2 W per channel |
| Output Current | 3 × 350 mA |
| Output Voltage | 3‑24 V DC |
| Open‑Circuit Voltage | 32 V |
| Number of Slaves per Master | 256 |
| Operating Ambient Temperature | +50 °C |
| Storage Ambient Temperature | +60 °C |
| Case Temperature | +80 °C |
| Relative Humidity | 90 % non‑condensing |
| Lifetime (failure after 50 000 h) | 5 % |
| Dimensions (Master Unit) | L178.0 mm × W53.0 mm × H32.5 mm |
| RF Frequency Range | 433.92 MHz |
| Modulation | FM |
A master unit can control up to 256 slave units.
The remote operates at 433.92 MHz.
It accepts an input voltage from 86 V to 265 V AC.
