This document describes the features and characteristics of a certain brand of a certain model.

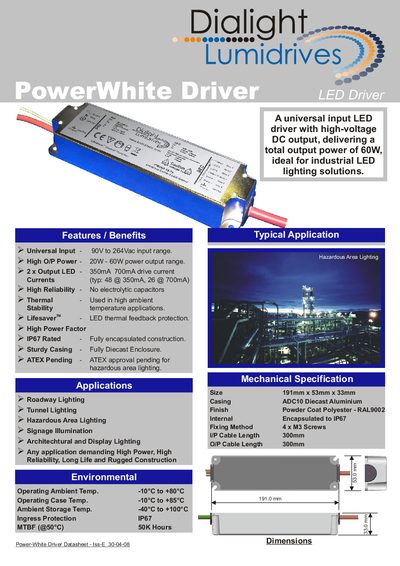

The PWD60-35-70 Power‑White driver is a universal input LED driver designed for industrial lighting, hazardous‑area lighting and signage. It accepts 90 V to 264 V Ac input, delivers 20 W‑60 W output power, and offers high reliability with no electrolytic capacitors and LED thermal feedback protection.
The unit is housed in a die‑cast aluminium enclosure (191 mm × 53 mm × 33 mm) with an IP67 rating. It operates in ambient temperatures from –10 °C to +80 °C (case up to +85 °C) and includes wiring diagrams for 3‑core + earth bond connections, selectable 350 mA or 700 mA constant‑current outputs, and over‑temperature and open‑circuit protection.
| Input voltage range | 90 V‑264 V Ac |
|---|---|
| Output current (pre‑set) | 350 mA ±5 % or 700 mA ±5 % |
| Maximum input current | 1.2 A |
| Output voltage range | 55 Vdc‑180 Vdc |
| IP rating | IP67 |
| Operating ambient temperature | -10 °C to +80 °C |
| Operating case temperature | -10 °C to +85 °C |
| Dimensions | 191 mm × 53 mm × 33 mm |
| MTBF (at 50 °C) | 50 000 h |
It accepts a universal input voltage from 90 V to 264 V Ac.
The driver can be set to a constant‑current output of either 350 mA or 700 mA, each with a ±5 % tolerance.
