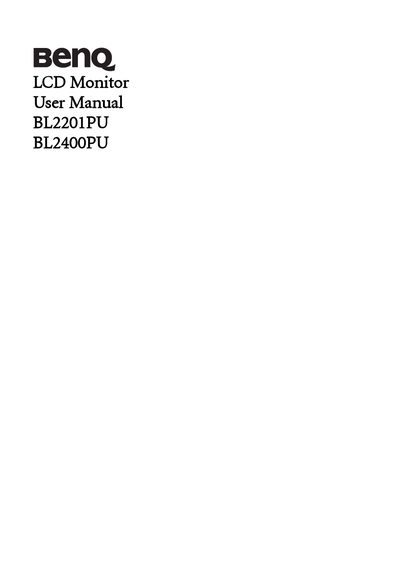

BenQ BL2201PU / BL2400PU LCD Monitor User Manual

This user manual introduces the features and characteristics of BenQ BL2201PU and BL2400PU displays.

Brand: BenQ
Category: Monitor
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 3.6 MB
Published: 03 May, 2012
Updated: 30 September, 2023
MD5 checksum: FD7375D48C375F107A171D1F04F6EBAB
PDF: BenQ BL2201PU / BL2400PU LCD Monitor User Manual PDF

About this manual

This BenQ user manual provides step‑by‑step instructions for unpacking, assembling, and connecting the BL2201PU and BL2400PU LCD monitors. It includes safety guidelines, hardware assembly procedures, and detailed instructions for connecting video cables (D‑Sub, DVI‑D, DisplayPort) and USB devices.

The guide also explains how to adjust the monitor stand height, rotate the display, use the on‑screen display (OSD) controls, and troubleshoot common issues such as power‑management prompts, image distortion, and audio problems. Contact information for further support is provided at the end of the manual.

What's inside

Getting started
Getting to know your monitor
Assembling monitor hardware
Adjusting stand height and rotation
Connecting video and USB cables
Picture optimization
Control panel and OSD functions
Hot key and main menu modes
Troubleshooting
Frequently asked questions

Specifications

Approved power cord	HO3VV-F or HO5VV-E, 2G or 3G, 0.75 mm²
Maximum USB port power	100 mA per port

Frequently asked questions

How can I unlock the OSD controls if they are locked?

Press and hold the MENU key for 15 seconds to access the OSD Lock option, then set it to "NO" to unlock the controls.
