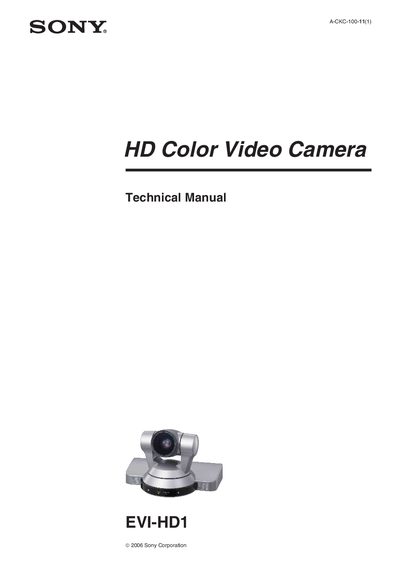

This is the technical manual for the Sony EVI-HD1 high-definition color video camera. It introduces the features and characteristics of the camera, including its high-definition resolution, high-speed panning and tilting, multiple format compatibility, and remote control.
This technical manual covers the EVI‑HD1 camera’s hardware layout, basic functions, and configuration options. It includes sections on control locations, zoom and focus operation, VISCA command usage, and video output settings.
The manual also lists the camera’s specifications, such as sensor resolution, video formats, power requirements, and operating temperature limits, and provides safety precautions and maintenance advice.
| Effective picture elements | 2,000,000 pixels |
|---|---|
| HD output interface | SMPTE292M serial digital interface |
| RS-232C baud rate options | 38400 bps or 9600 bps |
| Power input | 12 V DC |
| Operating temperature range | 0 °C to +40 °C |
The camera can output HD video in formats such as 1080i/59.94, 1080p/29.97, 720p/59.94, and others via the HD‑OUT connector.
Set Switch 2 to ON for 38400 bps or OFF for 9600 bps before turning the camera on.
The sensor provides 2,000,000 effective picture elements (pixels).
